Removal and Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the Front Controls Interface Module (FCIM). FRONT CONTROLS INTERFACE MODULE (FCIM) .

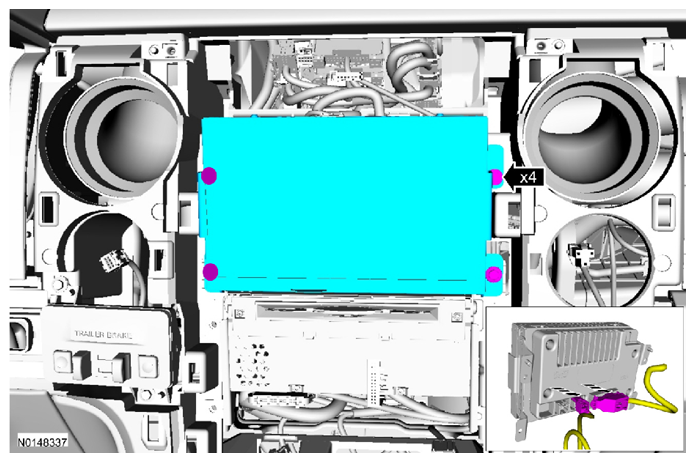

Remove the 4 bolts and the Front Display Interface Module (FDIM).
- Disconnect the electrical connectors.
- To install, tighten to 2.5 Nm (23 lb-in).

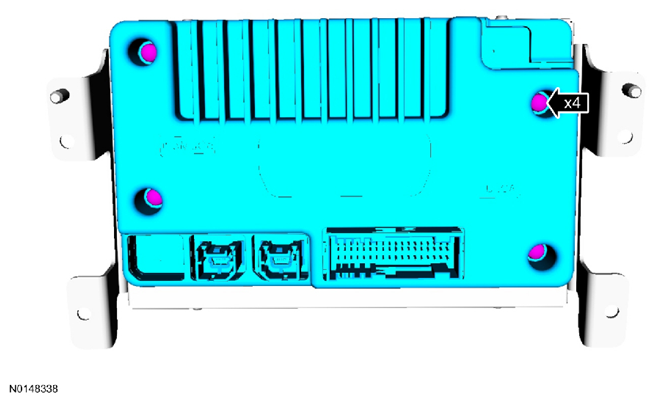

Remove the 4 screws and remove the Accessory Protocol Interface Module (APIM) from the FDIM .
- To install, tighten to 0.6 Nm (5 lb-in).
To install, reverse the removal procedure.
Calibrate the FDIM touchscreen. Refer to TOUCHSCREEN CALIBRATION .
