Front Disc Brake: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

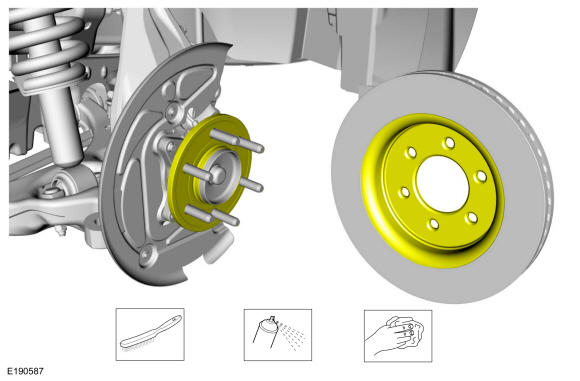

Clean the brake disc mating surfaces using a wire brush and the specified material.
Material

: Metal Brake Parts Cleaner / PM-4-A, PM-4-B

GFD38806

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Make sure that the brake hose is not twisted when installing the brake caliper or damage to the brake flexible hose may occur.

To install, reverse the removal procedure.

3.

Apply the brake pedal several times to verify correct brake system operation.
