Block Heater: Notes

WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .
NOTE: 3.7L Ti-VCT shown, 3.5L Gasoline Turbocharged Direct Injection (GTDI) similar.

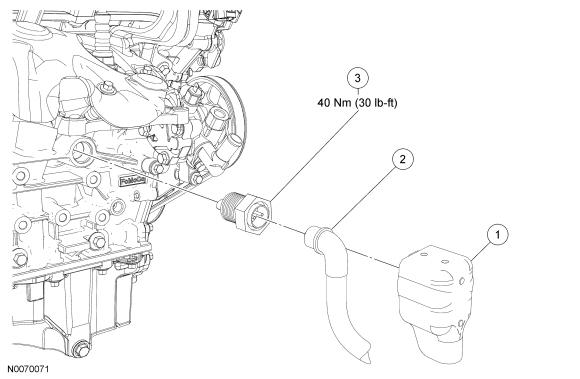

Fig 1: Block Heater Replacement Components With Torque Specifications
GFD88010Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 030104 Block heater cover
2 6B018 Block heater electrical connector
3 6A051 Block heater
