Connector Repair Procedures

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

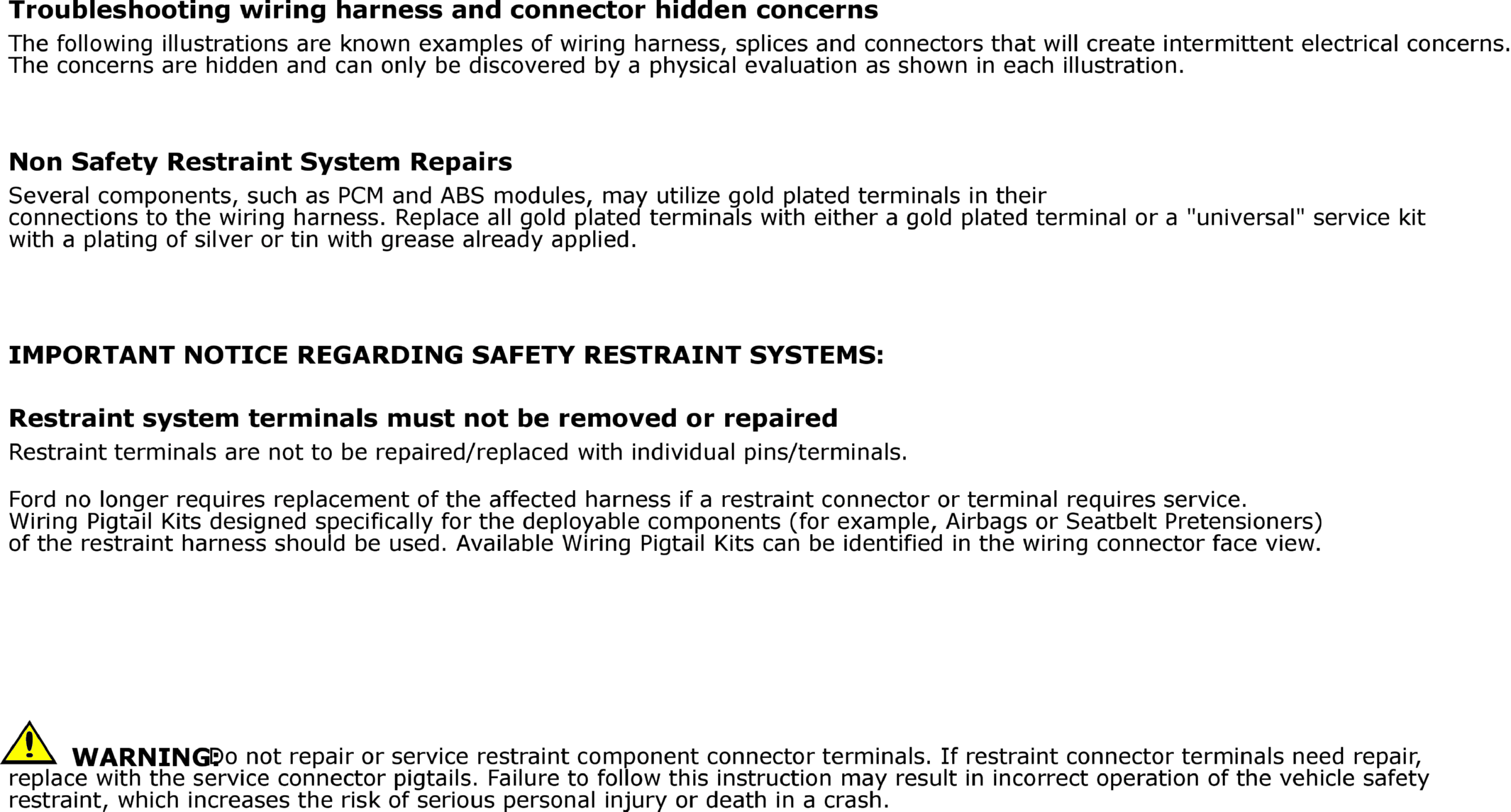

GFDW35834Courtesy of FORD MOTOR COMPANY

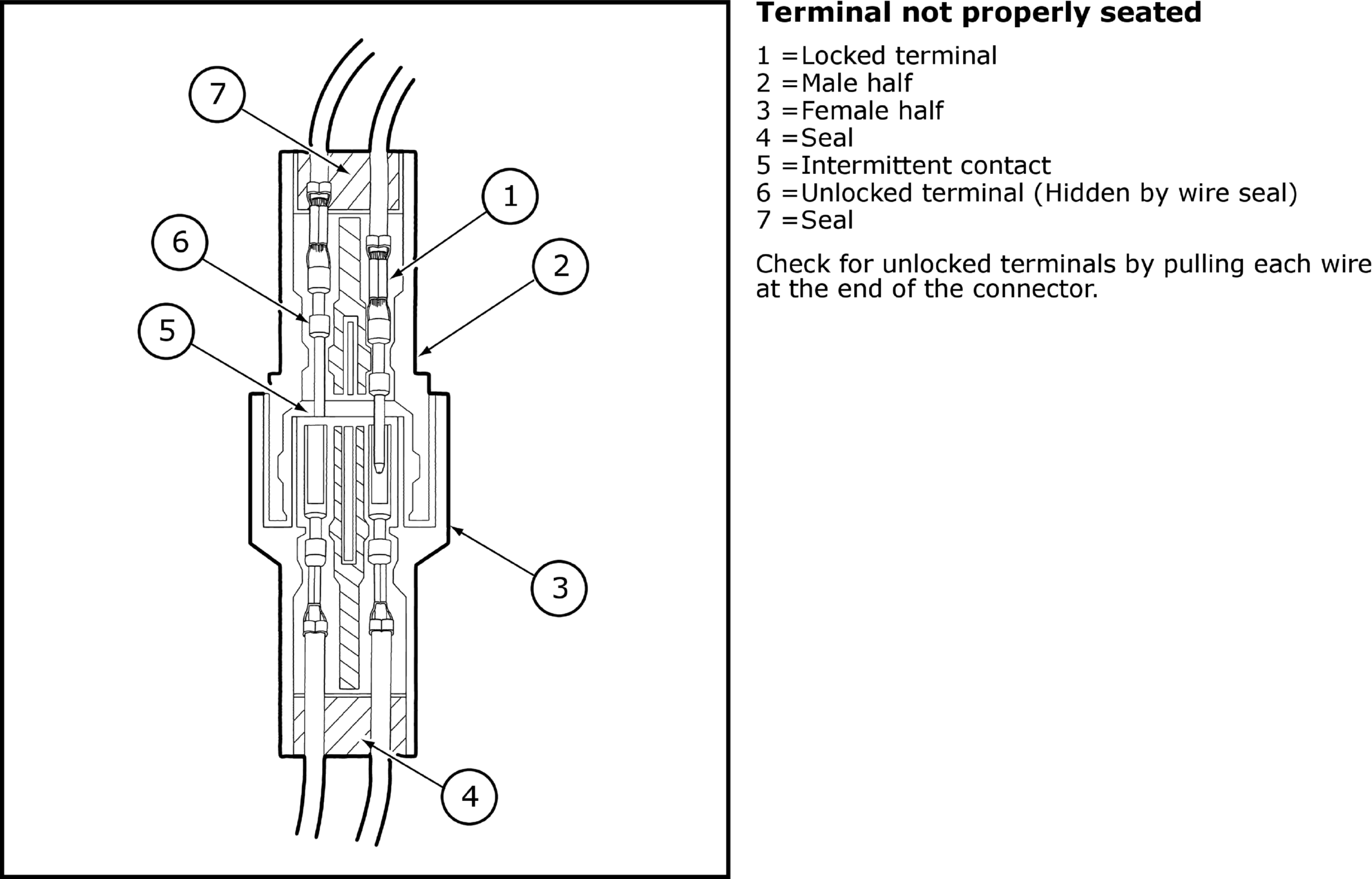

GFDW35835Courtesy of FORD MOTOR COMPANY

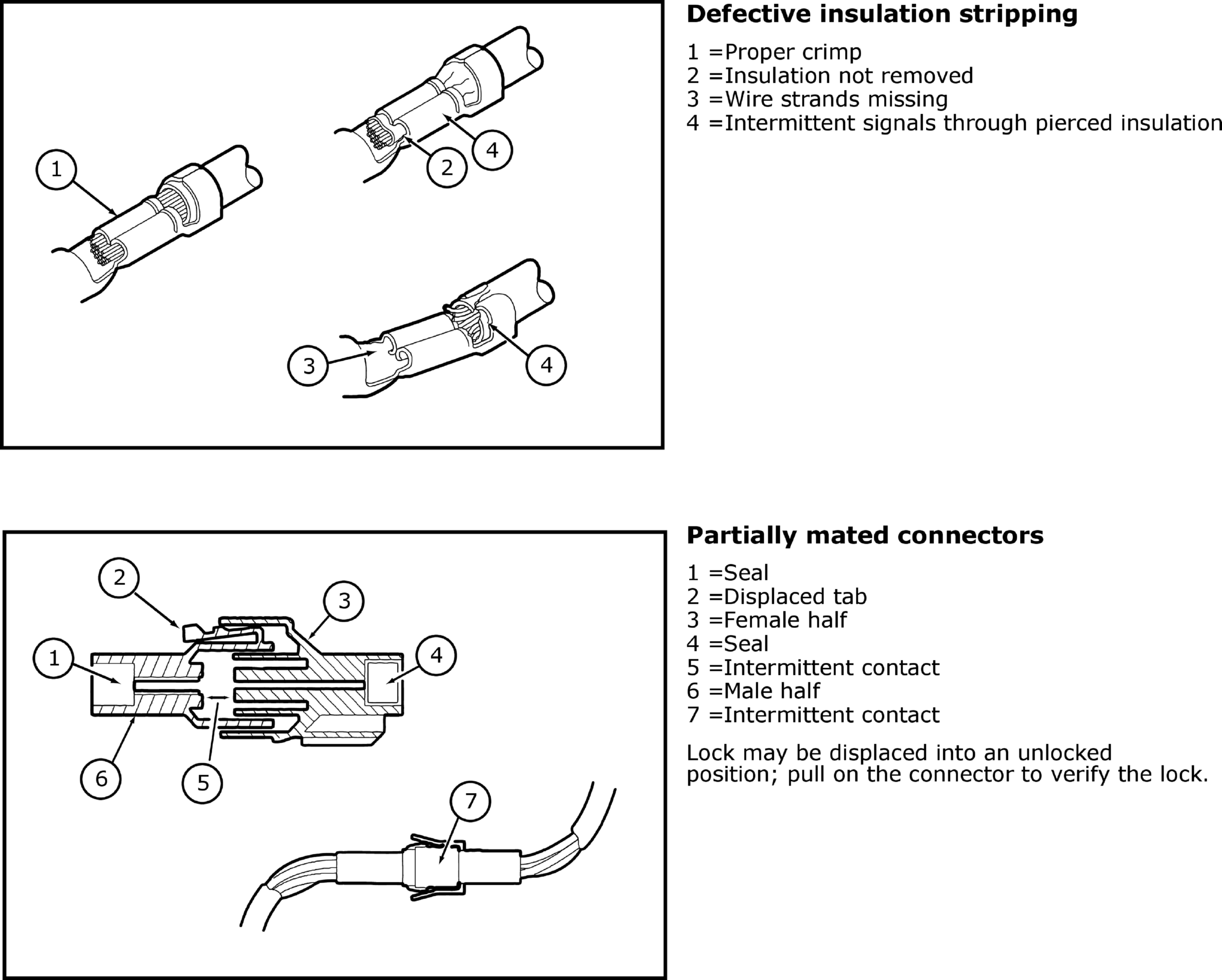

GFDW35836Courtesy of FORD MOTOR COMPANY

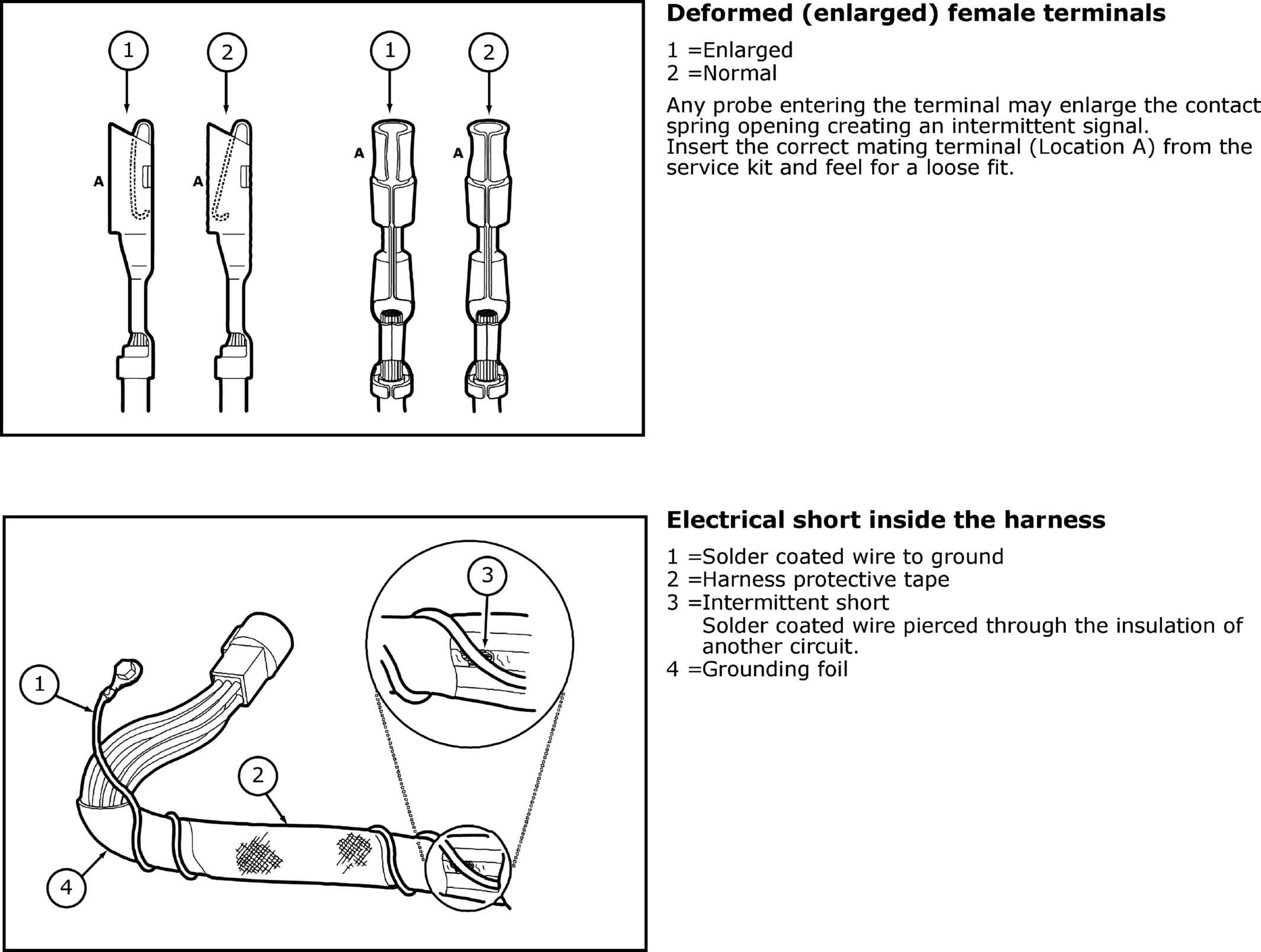

GFDW35837Courtesy of FORD MOTOR COMPANY

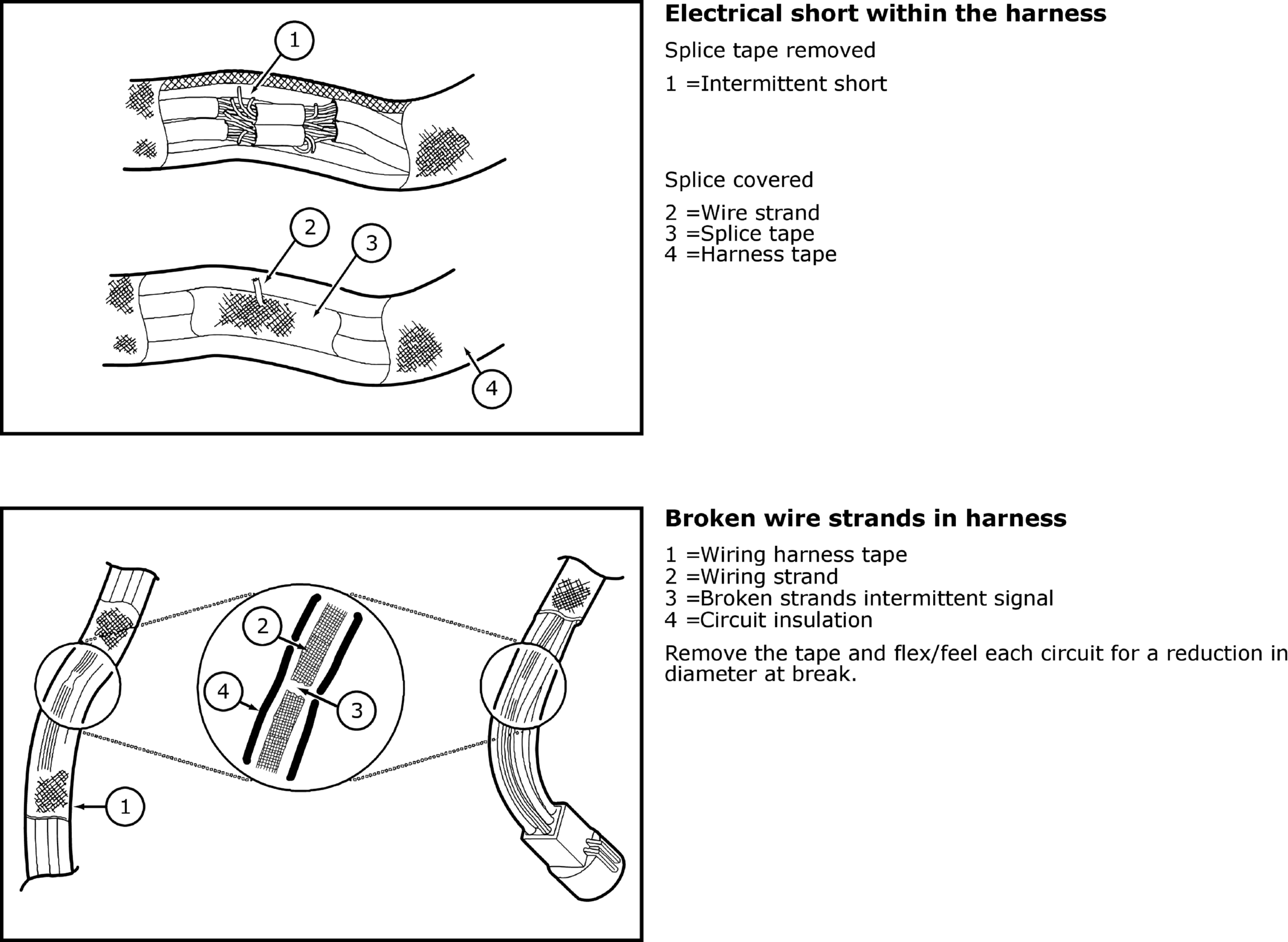

GFDW35838Courtesy of FORD MOTOR COMPANY

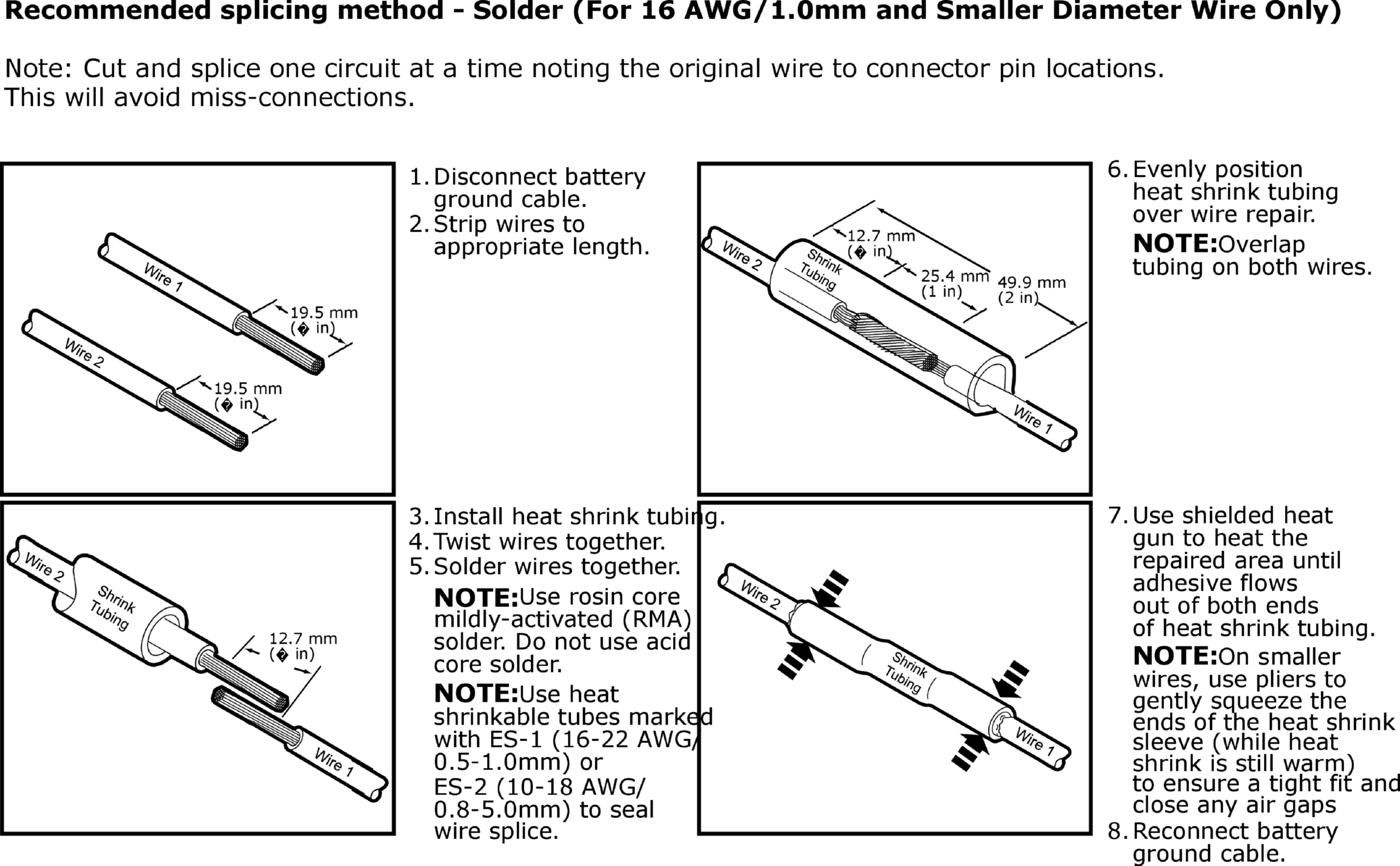

GFDW35839Courtesy of FORD MOTOR COMPANY

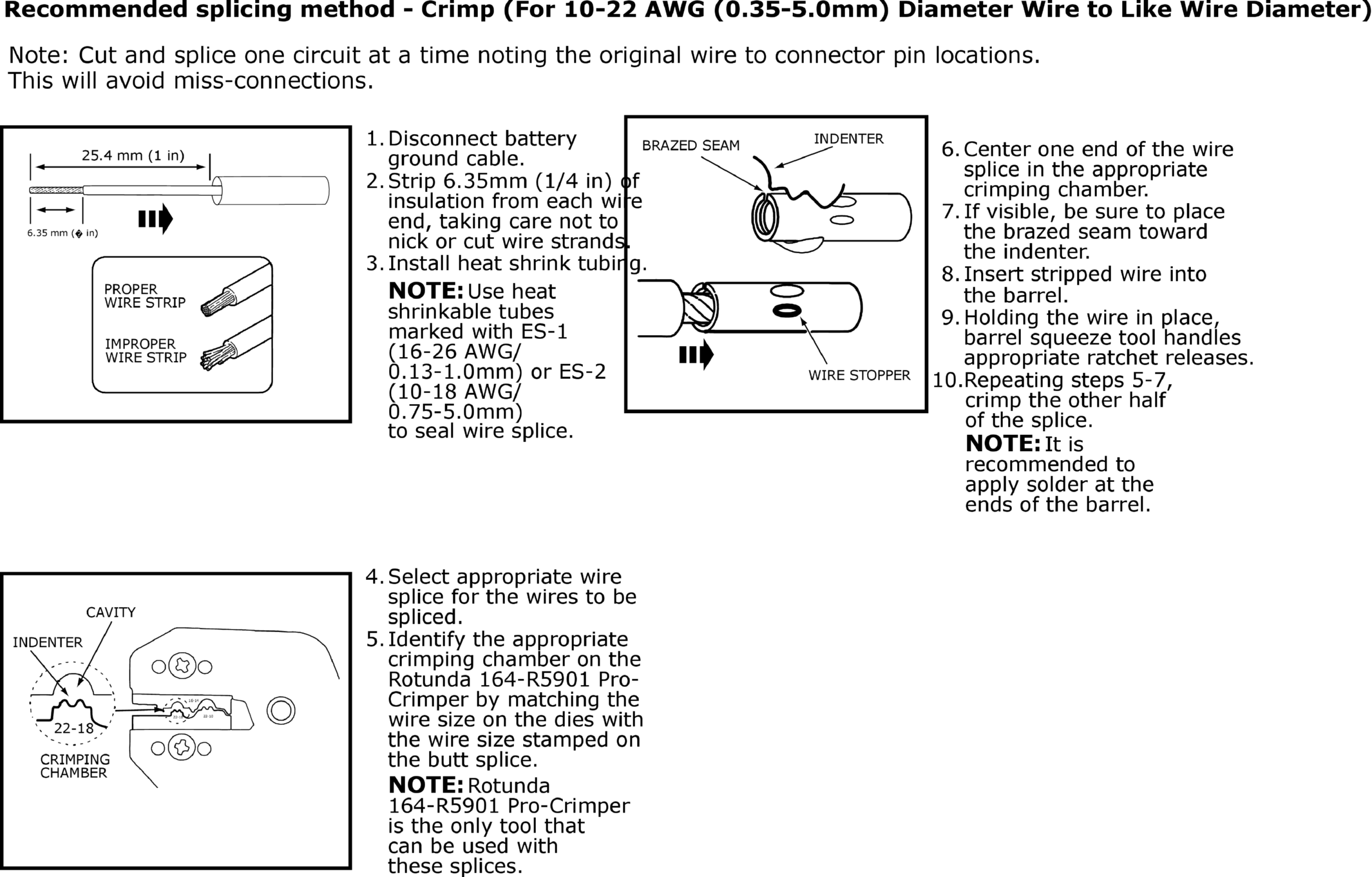

GFDW35840Courtesy of FORD MOTOR COMPANY

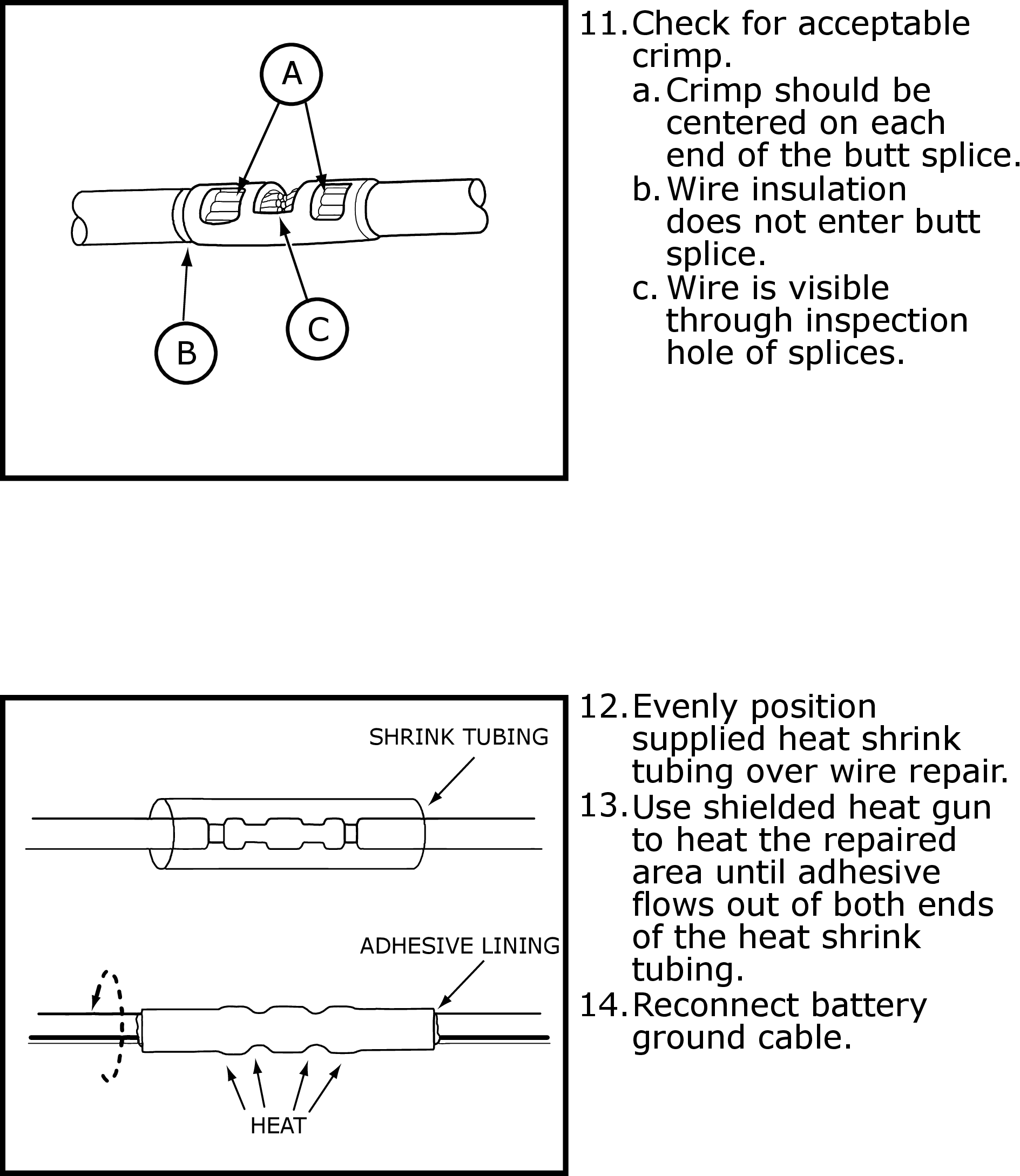

GFDW35841Courtesy of FORD MOTOR COMPANY

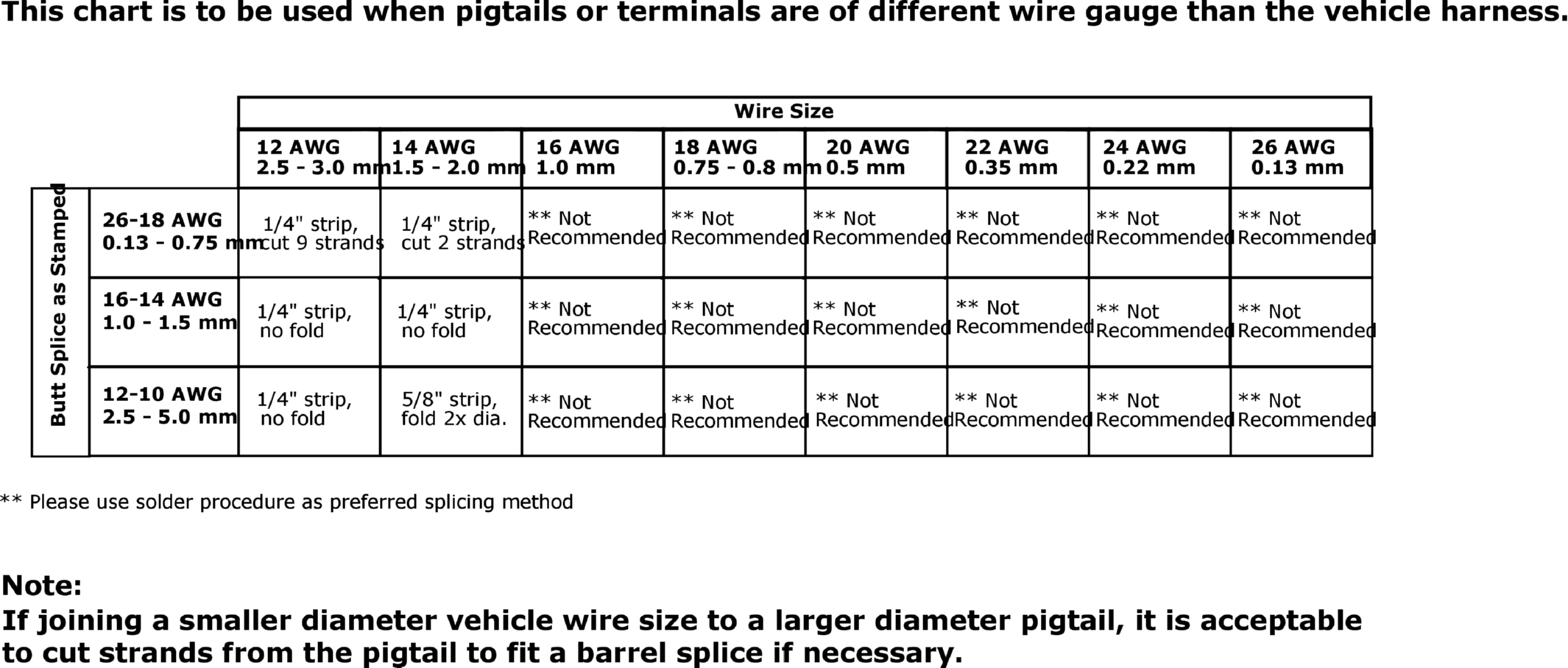

GFDW35842Courtesy of FORD MOTOR COMPANY
