Headlamp Control Module (HCM): Notes

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: The front bumper cover is shown removed for clarity.

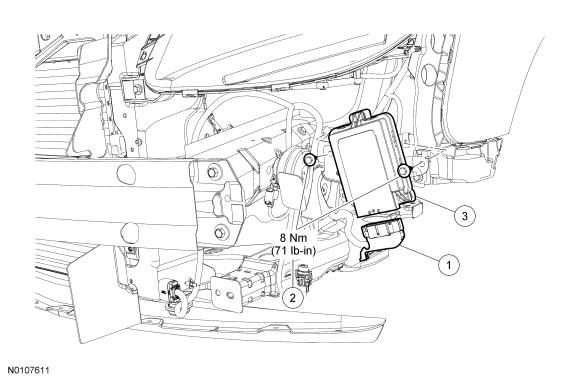

Fig 1: Headlamp Control Module Component Location With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	HCM electrical connector (part of 14290)
2	N705134	Headlamp Control Module (HCM) bolts (2 required)
3	13K198	HCM
