Cruise-Control Module (C-CM): Installation

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

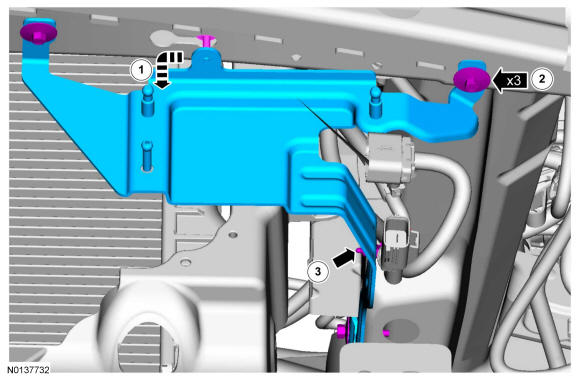

Bracket

1.
- Tighten the bolts to 8 Nm (71 lb-in).

Courtesy of FORD MOTOR COMPANY

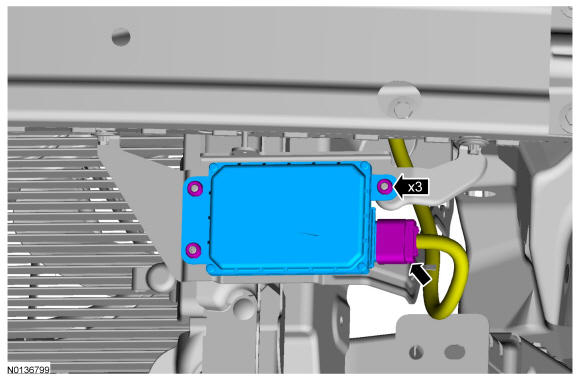

C-CM or bracket

NOTE: The vertical and horizontal alignment procedures need to be carried out to align the sensor.

2.

NOTE: If one plastic grommet breaks while the C-CM is being installed, a new grommet should be installed.

NOTE: Firmly apply pressure to the C-CM so that it seats completely in the grommets.

Courtesy of FORD MOTOR COMPANY

3.

Once the C-CM is installed, pull the C-CM to confirm that all 3 ball studs are fully seated in the grommets.

4.

NOTE: Do not install the front bumper cover until the alignment procedures are carried out.

Vertically and horizontally align the C-CM. For additional information, refer to Cruise Control Module (C-CM) (with Sensor) Adjustment .

5.

Install the front bumper cover. For additional information, refer to Bumpers .
