Cruise-Control Module (C-CM): Notes
WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

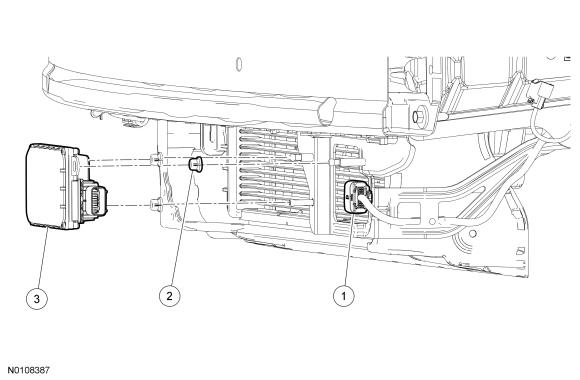

Cruise-Control Module (C-CM)
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Cruise-Control Module (C-CM) electrical connector (part of 14290) |
| 2 | W790214 | C-CM ball socket grommets (3 required) |
| 3 | 9E731 | C-CM |

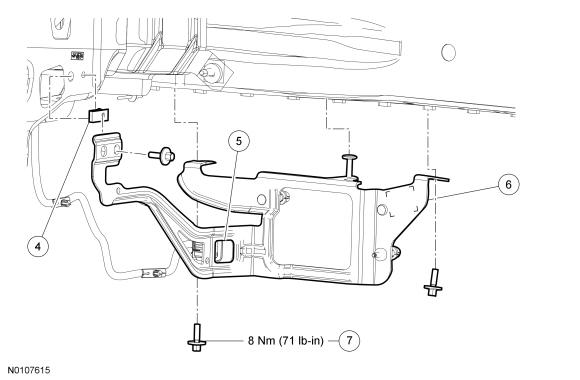

C-CM Bracket
| Item | Part Number | Description |
|---|---|---|
| 4 | W520812 | Cruise-Control Module (C-CM) bracket U-nut |
| 5 | - | C-CM electrical connector (part of 14290) |
| 6 | 9C736 | C-CM bracket |
| 7 | W710879 | C-CM bracket bolts (3 required) |
