Differential - 4WD: Notes

WARNING: This page is about a different car, the 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL

G04621055Courtesy of FORD MOTOR CO.
2-Jaw Puller
205-D035 or equivalent
G04621056Courtesy of FORD MOTOR CO.
Bearing Puller
205-D064 or equivalent
G04621057Courtesy of FORD MOTOR CO.
Dial Indicator Gauge with Holding Fixture
100-D002 or equivalent

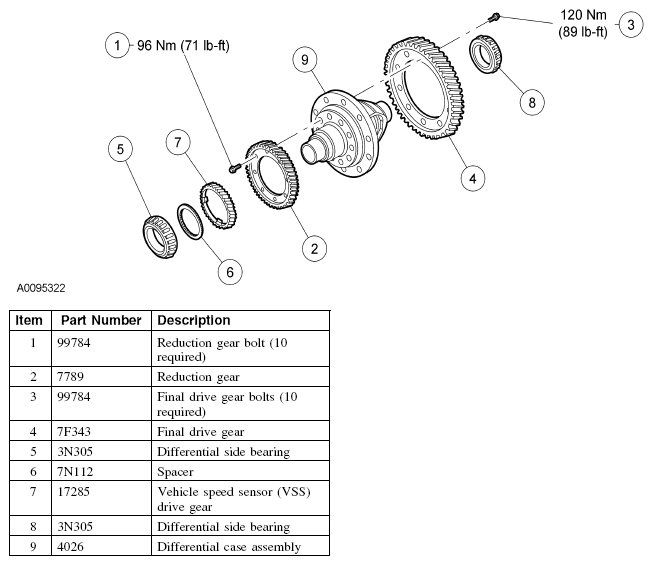

Fig 1: Identifying Differential - 4WD Components With Torque specifications
G04621058Courtesy of FORD MOTOR CO.
