Front Disc Brake: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Metal Brake Parts Cleaner PM-4-A or PM-4-B (US); CPM-4 (Canada) |
- |
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
| High Temperature Nickel Anti-Seize Lubricant XL-2 (US); CXG-2-B (Canada) |
ESE-M12A4-A |

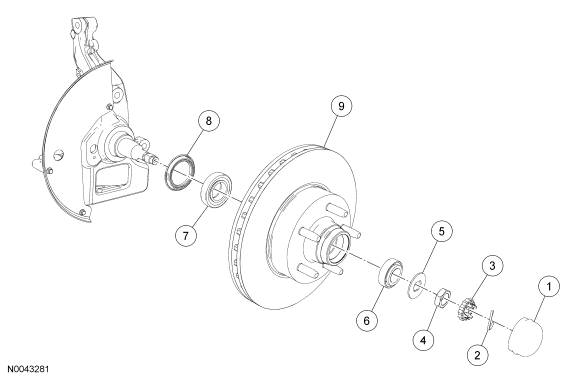

| Item | Part Number | Description |
|---|---|---|
| 1 | 1131 | Hub grease cap |
| 2 | N642569 | Cotter pin |
| 3 | 390622 | Hub spindle nut retainer |
| 4 | 374504 | Hub spindle nut |
| 5 | 1195 | Outer wheel bearing retaining washer |
| 6 | 1216 | Outer wheel bearing |
| 7 | 1216 | Inner wheel bearing |
| 8 | 1190 | Grease seal |
| 9 | 1104 | Brake disc and hub assembly |

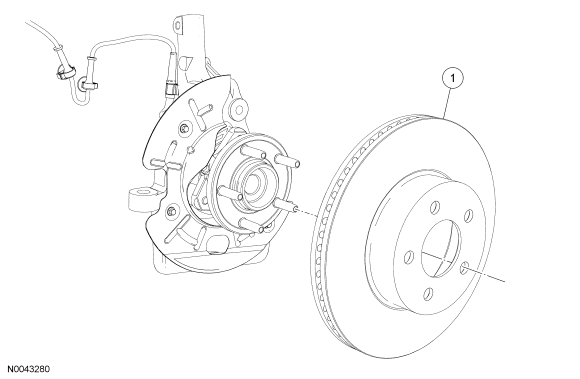

| Item | Part Number | Description |
|---|---|---|
| 1 | 1125 | Brake disc |
