Main Control Valve Body: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Aligner, Valve Body	307-333 (T95L-70010-B)
	Aligner, Valve Body	307-334 (T95L-70010-C)

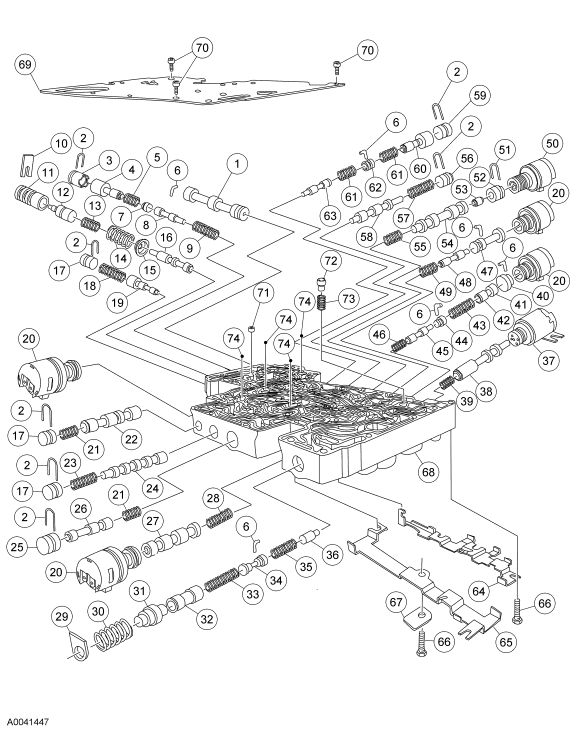

Fig 1: Exploded View Of Main Control Valve Body (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Valve - manual
2	7E335	Retainers - valve plug (7 required)
3	7M203	Valve - electronic pressure control (EPC) blowoff
4	-	Valve - forward modulator
5	-	Spring - forward modulator
6	7E335	Retainers - valve plug (6 required)
7	-	Plug - valve retainer
8	-	Valve - EPC boost
9	-	Spring - EPC boost
10	7E336	Retainer - valve plug
11	-	Sleeve - pressure boost
12	-	Valve - pressure boost
13	-	Spring - pressure boost
14	-	Spring - oil pressure regulator
15	-	Retainer - main regulator spring
16	-	Valve - pressure regulator
17	-	Plugs - valve retainer (3 required)
18	-	Spring - forward engagement
19	-	Valve - forward engagement control
20	7G484	Solenoids - shift (4 required)
21	-	Springs - 4-3 (K.D./T.D.) (2 required)
22	-	Valve - 4-3 (K.D.)
23	-	Spring - manual low (1)
24	-	Valve - manual low (1)
25	-	Plug - valve retainer
26	-	Valve - 4-3 (T.D.)
27	-	Valve - 1-2 and 4-5 shift
28	-	Spring - 1-2 and 4-5 shift
29	7E366	Retainer - valve plug
30	-	Spring - thermostat bypass
31	-	Valve - thermostatic bypass
32	-	Valve - thermostat bypass
33	-	Spring - thermostat bypass
34	-	Plug - valve retainer
35	-	Spring - cooler limit
36	-	Valve - cooler limit
37	7G136	Solenoid - torque converter clutch (pulse width modulated [PWM])
38	-	Valve - converter clutch
39	-	Spring - converter clutch
40	-	Plug - valve retainer
41	-	Valve - converter clutch
42	-	Spring - converter clutch
43	-	Spring - converter clutch (3.0L and 4.0L only)
44	-	Plug - valve retainer
45	-	Valve - coast clutch
46	-	Spring - coast clutch
47	-	Plug - valve retainer
48	-	Valve - 4-3 downshifts
49	-	Spring - 4-3 downshifts
50	7G383	Solenoid - EPC (variable force shift [VFS])
51	7E335	Retainer - valve plug
52	-	Plug - valve retainer
53	-	Valve - 2-3 shift
54	-	Valve - 2-3 shift
55	-	Spring - 2-3 shift
56	-	Plug - valve retainer
57	-	Spring - 3-4 shift
58	-	Valve - 3-4 shift
59	-	Plug - valve retainer
60	-	Valve - reverse modulation
61	-	Springs - reverse modulation (2 required)
62	-	Plug - valve retainer
63	-	Valve - reverse modulation
64	7L491	Clamp - SSA/SSC
65	7L491	Clamp - SSB/SSD/EPC/TCC
66	E800155	Screw - retain solenoid clamps (2 required)
67	7D132	ID plate
68	-	Body - valve
69	7Z490	Plate - separator
70	E804357	Screws - retain separator plate (3 required)
71	7D376	Extension housing lube orifice
72	7E368	Valve - converter relief (plastic)
73	7E340	Spring - EPC limit/converter relief (2 required)
74	7E195	Balls (4 required)

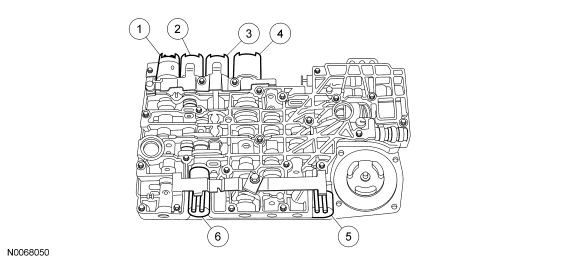

Fig 2: Exploded View Of Main Control Valve Body (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7F037	Torque converter clutch (TCC)
2	7G484	Shift solenoid (SSD)
3	7G484	Shift solenoid (SSB)
4	7H144	Electronic pressure control (EPC)
5	7G484	Shift solenoid (SSA)
6	7G484	Shift solenoid (SSC)
