Output Shaft Speed (OSS) Sensor: Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

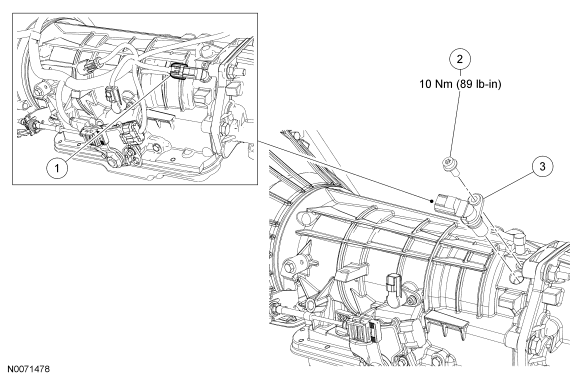

Fig 1: Output Shaft Speed (OSS) Sensor With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Output shaft speed (OSS) sensor electrical connector
2	W702297-S	OSS sensor screw
3	7H103-B	OSS sensor
