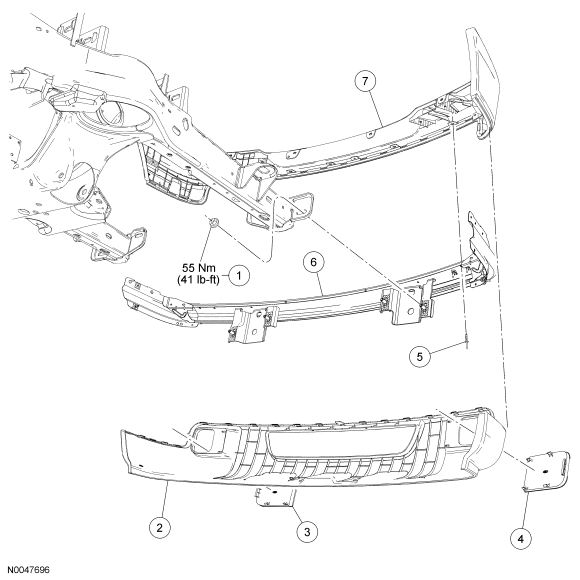

Bumper - Exploded View, Front
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N621946-S | Front bumper nut (4 required) |
| 2 | 17F792 | Lower front bumper cover |
| 3 | 15B216 | Cover LH |
| 4 | 15B217 | Cover RH |
| 5 | - | Front bumper cover plastic rivet (14 required) |
| 6 | 17F021 | Front bumper |
| 7 | 17F003 | Upper front bumper cover |
- For additional information, refer to the procedures in this article.
