Seat - Exploded View, Front

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver backrest shown, passenger backrest similar.

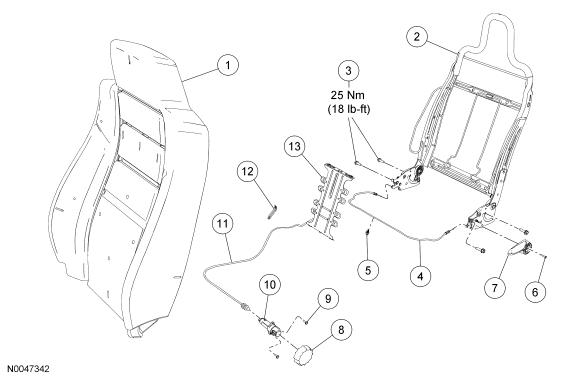

Fig 1: Exploded View Of Front Seat Backrest With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	64416/64810	Backrest trim cover/foam pad
2	61018	Backrest frame
3	60108	Backrest-to-cushion bolts (4 required)
4	624A54	Backrest latch release cable
5	-	Pin-type retainer
6	56904	Recliner handle screw
7	610A77	Recliner handle
8	61198	Lumber adjust knob, if equipped
9	000A25	Lumbar actuator screw (2 required), if equipped
10	610C00	Lumbar actuator, if equipped
11	-	Lumbar actuator cable (part of 62222), if equipped
12	-	Tie strap, if equipped
13	62222	Lumbar support, if equipped

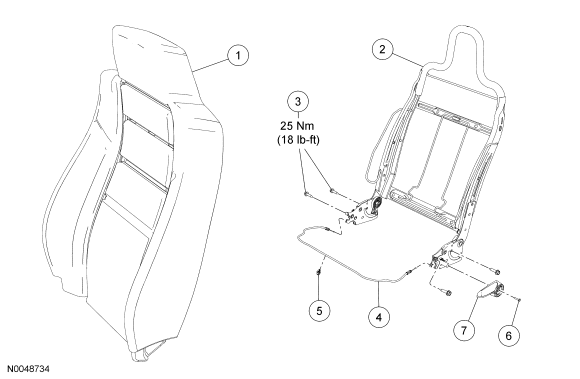

Fig 2: Exploded View Of Front Seat Backrest With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	64416/64810	Backrest trim cover/foam pad
2	61018	Backrest frame
3	60108	Backrest-to-cushion bolts (4 required)
4	624A54	Backrest latch release cable
5	-	Pin-type retainer
6	56904	Recliner handle screw
7	610A77	Recliner handle

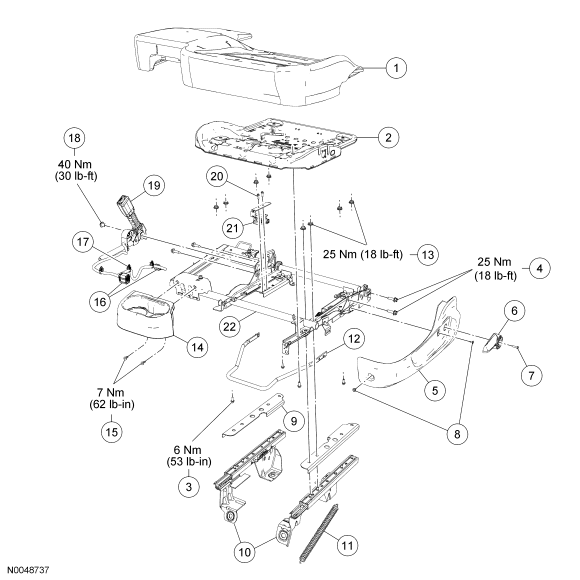

Fig 3: Exploded View Of Front Seat Cushion With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900/632A22	Cushion trim cover/foam pad
2	63100	Cushion frame
3	60108	Seat track-to-cushion frame bolt (4 required)
4	60108	Backrest-to-cushion bolts (4 required)
5	62186	Cushion side shield
6	61736	Recliner handle
7	55927	Recliner handle screw
8	000A25	Side shield screws (2 required)
9	617A46	Seat track reinforcement (2 required)
10	61704/61705	Seat track rails
11	61828	Seat track assist spring
12	61736	Seat track adjustment handle
13	W520413	Rail-to-seat track nuts (8 required)
14	-	Cup holder
15	000A25	Cup holder mounting screws (2 required)
16	-	Electrical connectors (part of 61203)
17	-	Pin-type retainer (3 required)
18	000A25	Safety belt buckle pretensioner nut
19	61203	Safety belt buckle pretensioner
20	-	Seat position sensor and bracket screw (2 required)
21	14B416	Seat position sensor and bracket
22	613B20	Seat track

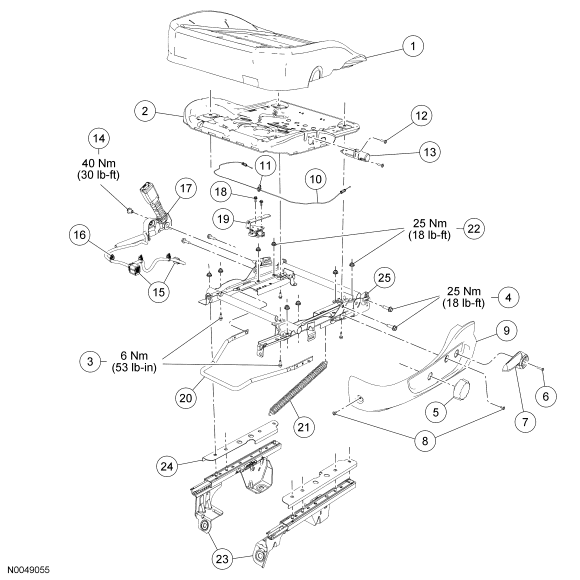

Fig 4: Exploded View Of Front Seat Cushion With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900/632A22	Cushion trim cover/foam pad
2	63100	Cushion frame
3	60108	Seat track-to-cushion frame bolts (4 required)
4	60108	Backrest-to-cushion bolts (4 required)
5	61198	Lumbar adjustment knob
6	55927	Recliner handle screw
7	61736	Recliner handle
8	000A25	Side shield screws (2 required)
9	62186	Cushion side shield
10	624A54	Backrest latch release cable
11	-	Pin-type retainer
12	000A25	Lumbar actuator screw (2 required)
13	610C00	Lumbar actuator
14	000A25	Safety belt buckle pretensioner nut
15	-	Electrical connectors (part of 61203)
16	-	Pin-type retainer (3 required)
17	61203	Safety belt buckle pretensioner
18	-	Seat position sensor screw (2 required)
19	14B416	Seat track position sensor
20	61736	Seat track adjustment handle
21	61828	Seat track assist spring
22	W520413	Rail-to-seat track nuts (8 required)
23	61704/61705	Seat track rails
24	617A46	Seat track reinforcement (2 required)
25	620B20	Seat track

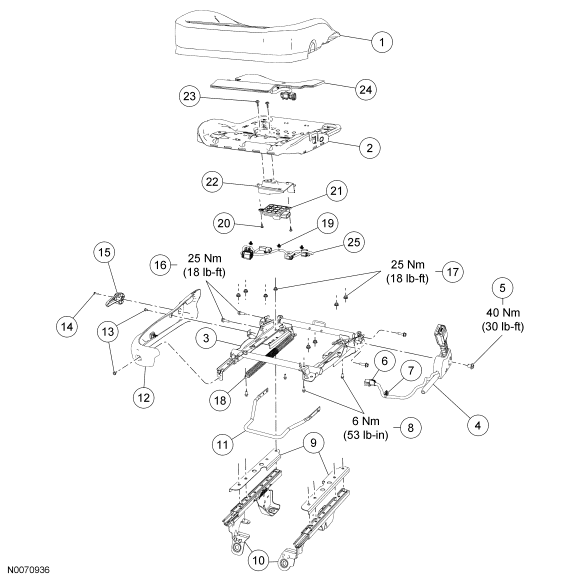

Fig 5: Exploded View Of Front Seat Cushion Front Passenger With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62900/603B02	Cushion trim cover/foam pad
2	63100	Cushion frame
3	613B20	Seat track
4	61202	Safety belt buckle pretensioner
5	000A25	Safety belt buckle pretensioner nut
6	-	Electrical connector (part of 61202)
7	-	Pin-type retainer
8	60108	Seat track-to-cushion frame bolts (4 required)
9	617A46	Seat track reinforcements
10	61704/61705	Seat track rails
11	61736	Seat track adjustment handle
12	62186	Cushion side shield
13	000A25	Side shield screws (2 required)
14	55927	Recliner handle screw
15	61736	Recliner handle
16	60108	Backrest-to-cushion bolts (4 required)
17	W520413	Rail-to-seat track nuts (8 required)
18	61828	Seat track assist spring
19	-	Pin-type retainer (3 required)
20	-	Screw (2 required)
21	-	Occupant classification system module (OCSM) (part of 603B02)
22	-	OCSM bracket
23	-	Screw (2 required)
24	-	OCS (bladder, hose with pressure sensor, OCSM and seat wiring harness) (part of 603B02)
25	14C719	Wiring harness

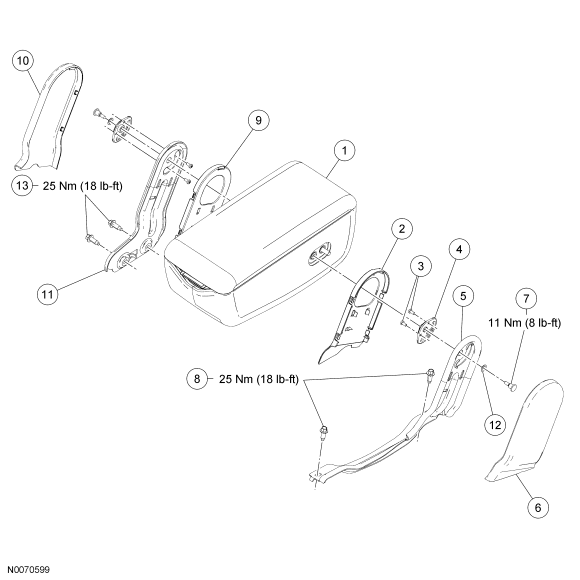

Fig 6: Exploded View Of Front Seat Armrest With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	644A22	Armrest
2	672A28B	LH inner trim cover
3	-	Pivot bracket screws (4 required)
4	63076C	Pivot bracket (2 required)
5	63076A	LH armrest bracket
6	672A28A	LH outer trim cover
7	-	Armrest pivot bolts (2 required)
8	-	LH armrest bracket-to-seat frame bolts (2 required)
9	672A28B	RH inner trim cover
10	672A28A	RH outer trim cover
11	63076B	RH armrest bracket
12	-	Washer (2 required)
13	-	RH armrest bracket-to-seat frame bolts (2 required)

For additional information, refer to the procedures in this article.
