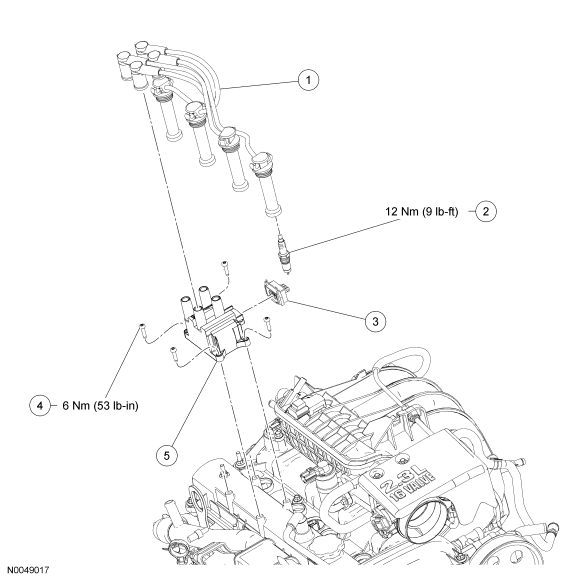

Engine Ignition Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 12280 | Spark plug wire (4 required) |
| 2 | 12405 | Spark plug (4 required) |
| 3 | - | Ignition coil electrical connector (part of 12B637) |
| 4 | W706995 | Ignition coil bolt (4 required) |
| 5 | 12026 | Ignition coil |
- For additional information, refer to the appropriate procedures.
