Hydraulic Control Unit (HCU): Notes

WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US), CPM-1 or CPM-1-C (Canada)	ESA-M6C25-A or WSS-M6C62-A

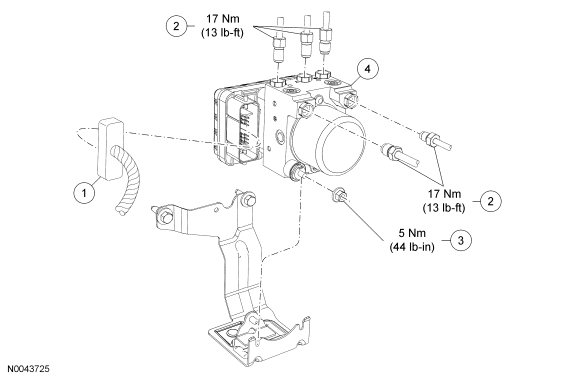

Fig 1: Exploded View Of Hydraulic Control Unit (HCU) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Anti-lock brake system (ABS) module electrical connector
2	-	Brake tube fittings (5 required)
3	2C348	Hydraulic control unit (HCU)-to-bracket nut (2 required)
4	2C215	HCU
