OEM Ground Distribution: Grounds: G100

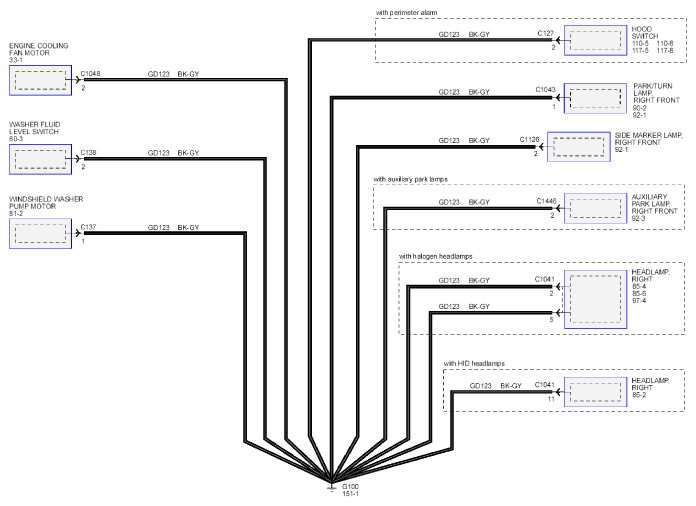

Fig 1: Grounds Circuit Diagram - G100

G07898015

Courtesy of FORD MOTOR CO.
