Side Air Bag Module: Notes
NOTE:

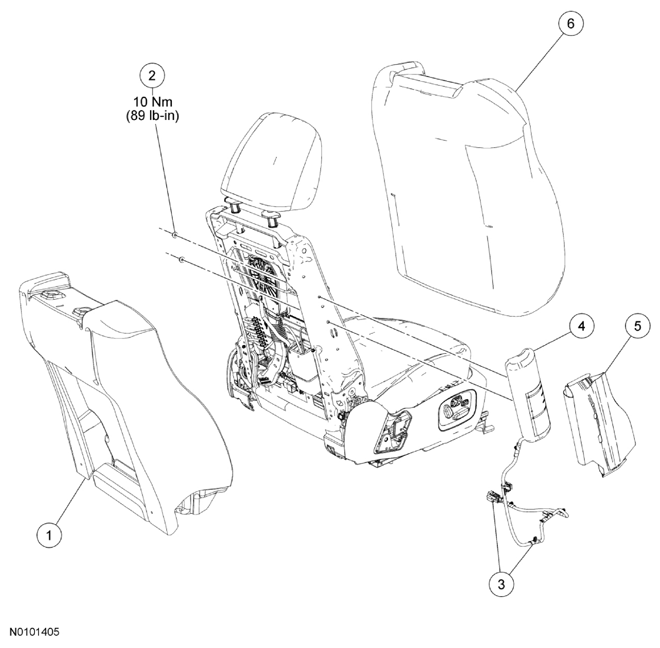

Passenger seat shown in illustration, driver seat similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 64810 | Backrest foam pad |
| 2 | W520111 | Side air bag module nut (2 required) |
| 3 | - | Side air bag module wiring harness (part of 611D10) |
| 4 | 611D10 | Side air bag module |
| 5 | 610E38 | Side air bag module deployment chute |
| 6 | 64416 | Backrest cover |
