Seat Cushion Cover Second Row, Livery

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Seat Cushion Cover - Second Row, Livery

General Equipment

Hog Ring Pliers
NOTE: 60 percent seat shown, 40 percent seat similar.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the second row seat. Refer to Seat - Second Row, Livery .

  1. 2.

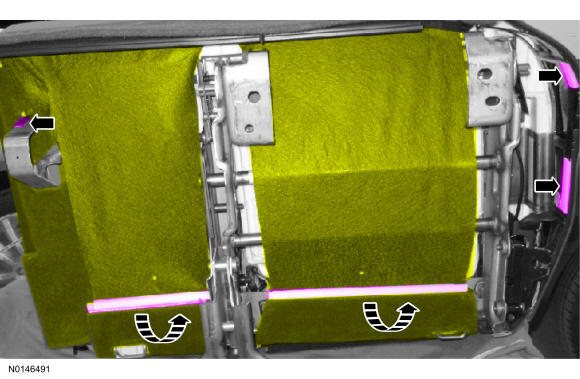

GFD95642Courtesy of FORD MOTOR COMPANY

  1. 3.

GFD95630Courtesy of FORD MOTOR COMPANY

  1. 4.

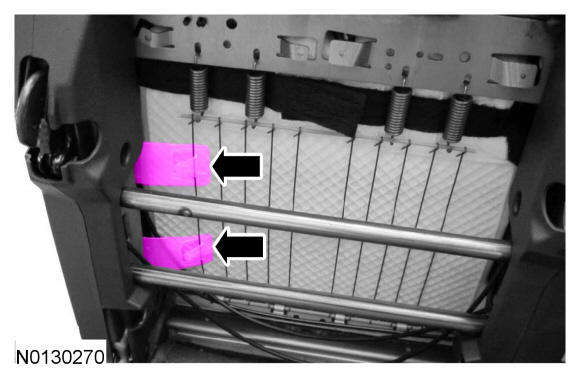

GFD95643Courtesy of FORD MOTOR COMPANY

  1. 5.

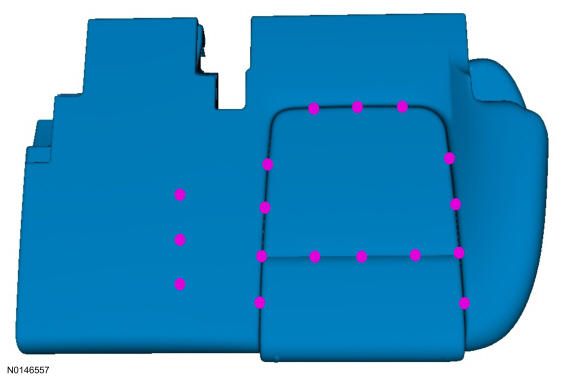

GFD95644Courtesy of FORD MOTOR COMPANY

  1. 6.

    To install, reverse the removal procedure. General Equipment: Hog Ring Pliers.
