Seat Cushion Thermo-Electric Device Front Row: Removal

WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component identification and locations, refer to Seat - Exploded View, Front in this service information.

1.

Remove the seat. For additional information, refer to Seat - Front in this service information.

2.

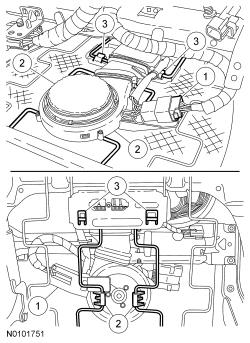

From under the seat, separate the cushion Thermo-Electric Device (TED).
1. 1.

  Disconnect the electrical connector.
1. 2.

  Disengage the 2 rear retainers.
  - Push one cushion support wire inboard while pushing the TED outboard. Repeat for the other retainer.
1. 3.

  Disengage the front retainers.

Courtesy of FORD MOTOR COMPANY

3.

Rotate and remove the cushion TED.

Courtesy of FORD MOTOR COMPANY
