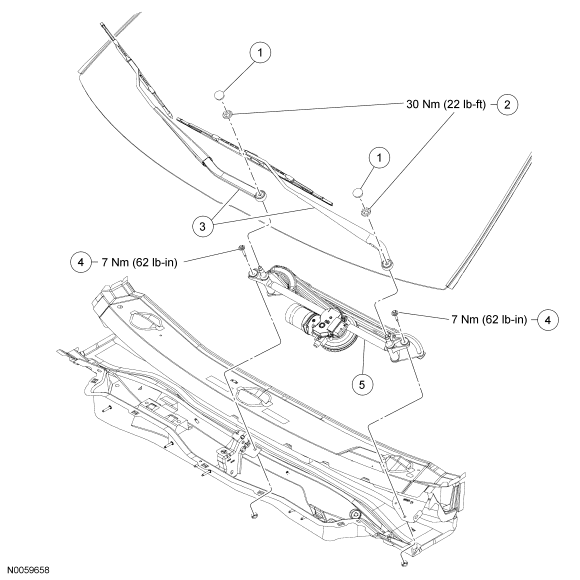

Wiper and Washer System - Exploded View, Front
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17C526 | Windshield wiper pivot arm nut cover |
| 2 | W708841 | Windshield wiper pivot arm nut |
| 3 | 17526 RH/ 17527 LH | Windshield wiper pivot arms |
| 4 | W707532 | Windshield wiper mounting arm and pivot shaft assembly bolts (2 required) |
| 5 | 17508 | Windshield wiper mounting arm and pivot shaft assembly |
- For additional information, refer to the appropriate procedures.
