Typical Diagnostic Reference Values

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
PCM SENSORS / INPUTS

PCM Sensors / Inputs PCM Pin / PID only Measured/PID Values Units Measured / PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
ACET / AC_ET B1 2.6-2.9 / 89- 102 2.6-2.9 / 89-102 2.6-2.9 / 89-102 2.6-2.9 / 89-102 DCV / DEG
A/CRSW / ACRSW B2 VBAT / YES 0.1 / NO (A) VBAT / YES VBAT / YES DCV / YES-NO
A/CFDS / ACFDS _P B3 0.1 / NO VBAT / YES (A) 0.1 / NO 0.1 / NO DCV / YES-NO
APPS1 / APP1 B5 4.1 4.1 3.6-4.1 3.6-4.1 DCV
BPP/BOO B8 0 VBAT (E) 0 0 DCV
FTP_V / FTP B9 2.6 / 0 2.6 / 0 2.6 / 0 2.6 / 0 DCV / IN-H2O
A/CCS / ACCS B15 0.1 / OFF VBAT / ON (A) 0.1 / OFF 0.1 / OFF DCV / ON-OFF
APPS2 / APP2 B17 1.5 1.5 1.5-2.0 1.5-2.4 DCV
SCCS B19 5 5 5 5 DCV
BPS B20 VBAT 0.1 / (E) VBAT VBAT DCV
ISP-RS / IGN_R/S B21 0.1 / NO 0.1 / NO 0.1 / NO 0.1 / NO DCV / YES-NO
ISP-R / IGN_R B22 VBAT / YES VBAT / YES VBAT / YES VBAT / YES DCV / YES-NO
BPO_Hz / BPO B24 2 / OFF 6 / ON (I) 2 / OFF 2 / OFF Hz / ON-OFF
A/CPSW / ACP B26 VBAT / OPEN VBAT / OPEN VBAT / OPEN VBAT / OPEN DCV / OPEN - CLOSED
APPS3 / APP3 B28 0.9 0.9 0.9-1.3 0.9-1.8 DCV
MAF_V B32 0 1.3-1.6 1.4-1.8 2-2.4 DCV
IAT_V / IAT B39 1.7-3.5 / 120-50 (G) *1.7-3.5 / 120-50 (G) 1.7-3.5 / 120- 50 (G) 1.7-3.5 / 120-50 (G) DCV / DEG
FPM B46 0.1-VBAT / 18-22 0.1-VBAT / 18- 22 0.1-VBAT / 18-22 0.1-VBAT / 18-22 DCV/%
FRT_V / FRT E6 0.5-3 / 210-110 0.5-3 / 210-110 0.5-3 / 210-110 0.5-3 / 210-110 DCV / DEG
TP2 E8 1-1.3 0.7-1 1-1.2 1.2-1.6 DCV
CMP E10 0 5-7 9-13 14-19 Hz
TP1 E19 4.1-4.4 4.4-4.4 4.0-4.3 3.5-3.8 DCV
MAP_V E23 4 2.5 2.1 3.1 DCV
FRP_V / FRP 27 2.9 / 41 2.9 / 41 2.9 / 41 2.9 / 41 DCV / PSI
IMRCM E29 0.1/0 0.1 or VBAT/0 or 5.1 VBAT/5.1 VBAT/5.1 DCV
HO2S11 / O2S11 E30 0 Switching (C) Switching (C) Switching (C) DCV
KS(+) / KS1 32 0 0 0 0 DCV
CHT_V / CHT 33 3.5 / 194 3.5 / 194 3.5 / 194 3.5 / 194 DCV / DEG
HO2S12 / O2S12 E42 0.1 (D) (D) (D) DCV
CKP(+) E34 0 600-660 725-755 1100-1300 Hz
MECT_V T3 2.6 2.6 3 3 DCV
TGAC / GTQ_CMD T5 300 / 0 95-300 / (-)5-0 270-300 / (-)22-0 270-300 / (-) 22-0 Hz / Lb-ft
TMAC / MTQ_OUT T7 300 / 0 95-300 / (-)5-0 295-300 / (-)5-0 295-300 / (-)5-0 Hz / Lb-ft
TR-A1 T16 4.25-4.80 (H) 4.25-4.80 (H) 1.60-2.15 (Q) 1.60-2.15 (Q) DCV
TR-A2 T28 .50-1.10 (H) 0.50-1.10 (H) 3.25-3.75 (Q) 3.25-3.75 (Q) DCV
DCE_F T34 0.1 0.1 0.1 0.1 DCV
TR-A3 T39 0.25-.75 (H) 0.25-.75 (H) 2.65-3.15 (Q) 2.65-3.15 (Q) DCV
A/CLPCS T43 VBAT VBAT VBAT VBAT DCV
BPO PID NO NO NO NO YES/NO
LOAD PID 50 20-25 35-40 40-45 %
RPM PID 0 1050-1100 1250-1350 1950-2100 RPM
PCM SENSORS / OUTPUTS

PCM Actuators / Outputs PCM Pin / PID only Measured / PID Values Units Measured / PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
FP B12 9.6 / 75 2.9 / 23 3/24 3.1/25 DCV / %
CANV / EVAPCV B13 0-10 / 0-100 0-10 / 0-100 0-10 / 0-100 0-10 / 0-100 Hz / %
A/CC(WAC) / ACCR B25 VBAT / OFF 1.5 / ON (A) VBAT / OFF VBAT / OFF DCV / OFF-ON
PSR 27 0.1 / ON 0.1 / ON 0.1 / ON 0.1 / ON DCV / ON-OFF
FTIV B29 VBAT / NO VBAT / NO VBAT / NO VBAT / NO DCV / YES-NO
MFC/FC2 B33 VBAT / OFF 0.1 / ON (B) VBAT / OFF VBAT / OFF DCV / ON-OFF
EVMV B34 0 0 500-900 500-900 mA
HFC/FC3 B37 VBAT / OFF 0.1 / ON (B) VBAT / OFF VBAT / OFF DCV / ON-OFF
LFC/FC1 B38 VBAT / OFF 0.1 / ON (B) VBAT / OFF VBAT / OFF DCV / ON-OFF
CD1A (CYL1) E1 VBAT VBAT VBAT VBAT DCV
INJ1 (CYL1) E3 0 3-6 4.5-5.5 7-8 mS
EGRMC1 E4 VBAT VBAT VBAT VBAT DCV
EGRMC3 E5 VBAT 1 VBAT VBAT DCV
CD3B (CYL3) E12 VBAT VBAT VBAT VBAT DCV
INJ2 (CYL2) E14 0 3-6 4.5-5.5 7-8 mS
EGRMC2 E15 1 VBAT 1 VBAT DCV
EGRMC4 E16 VBAT VBAT VBAT 1 DCV
CD4C (CYL4) E24 VBAT VBAT VBAT VBAT DCV
INJ3 (CYL3) E26 0 3-6 4.5-5.5 7-8 mS
IMRC E28 0.1/OFF 0.1 or VBAT/OFF or ON VBAT VBAT DCV/ON-OFF
CD2D (CYL2) E35 VBAT VBAT VBAT VBAT DCV
INJ4 (CYL4) E37 0 3-6 4.5-5.5 7-8 mS
TACM(+) E47 10.9 10-11 11.5-12 VBAT DCV
TACM(-) E48 VBAT VBAT VBAT 11-12 DCV
HTR11 E49 VBAT / OFF 0.1 / ON 0.1 / ON 0.1 / ON DCV / ON-OFF
HTR12 E50 VBAT / OFF 0.1 / ON 0.1 / ON 0.1 / ON DCV / ON-OFF
MECP V / MECP T4 0.1 / ON 0.1 / ON 0.1 / ON 0.1 / ON DCV / ON-OFF
GSDN T9 62 0 (L) 62 62 Hz
MSDN T11 62 0 (M) 62 62 Hz
A/CRDV / ACRDV T22 VBAT VBAT VBAT VBAT DCV
HPCR / HPUMP T23 VBAT / NO 0.1 / YES (O) VBAT / NO VBAT / NO DCV / YES-NO
DCE T44 VBAT / ON VBAT / ON VBAT / ON VBAT / ON DCV / ON-OFF
CTO T46 0 36 (N) 40-45 (N) 65-75 (N) Hz
EGRMDSD PID 3 0-9 11 25 STEP
FUELPW1 PID 0 3-6 4.5-5.5 7-8 mS
G_SDN PID NO YES (L) NO NO YES-NO
LONGFT1 PID (-)20 - (+) 20 (-)20 - (+)20 (-)20 - (+)20 (-)20 - (+)20 %
M_SDN PID NO YES (M) NO NO YES-NO
OTHER DIAGNOSTIC PID REFERENCE

Other PCM Pin / PID only Measured / PID Values Units Measured / PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
KAPWR B45 VBAT VBAT VBAT VBAT DCV
VPWR B35 / B36 VBAT VBAT VBAT VBAT DCV
VREF B40 / E40 5 5 5 5 DCV
VBAT PID VBAT VBAT VBAT VBAT DCV

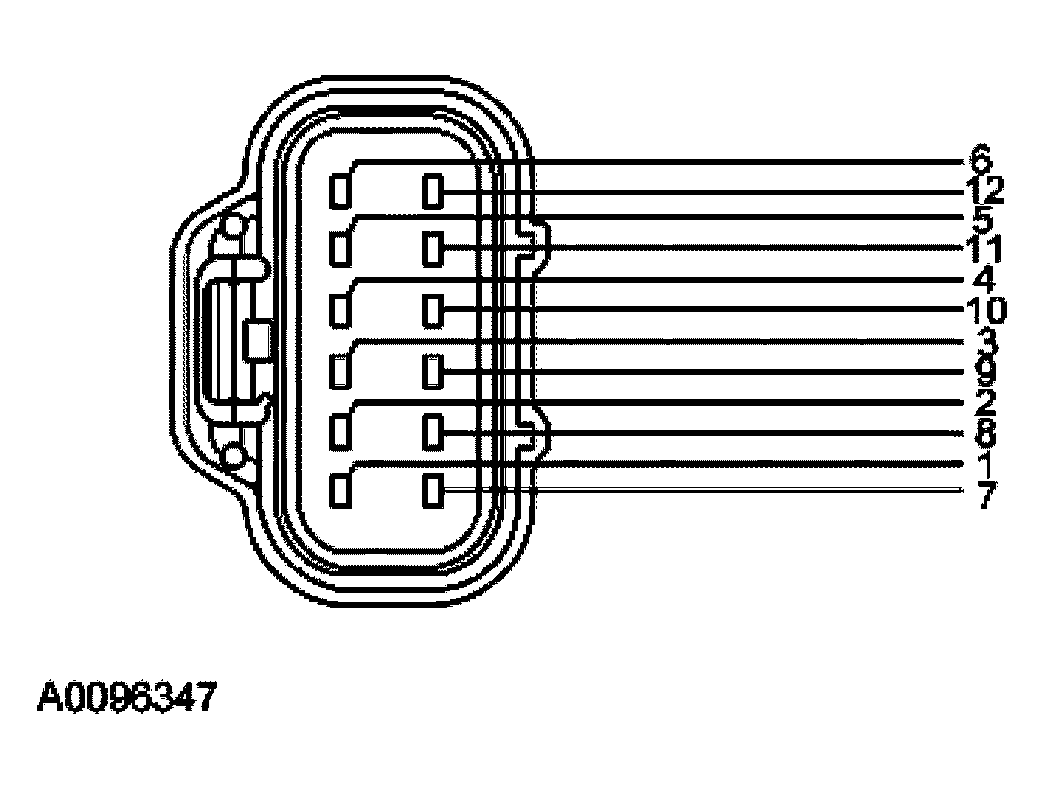

Fig 1: Identifying Transaxle Connector C1458A
G04586851Courtesy of FORD MOTOR CO.

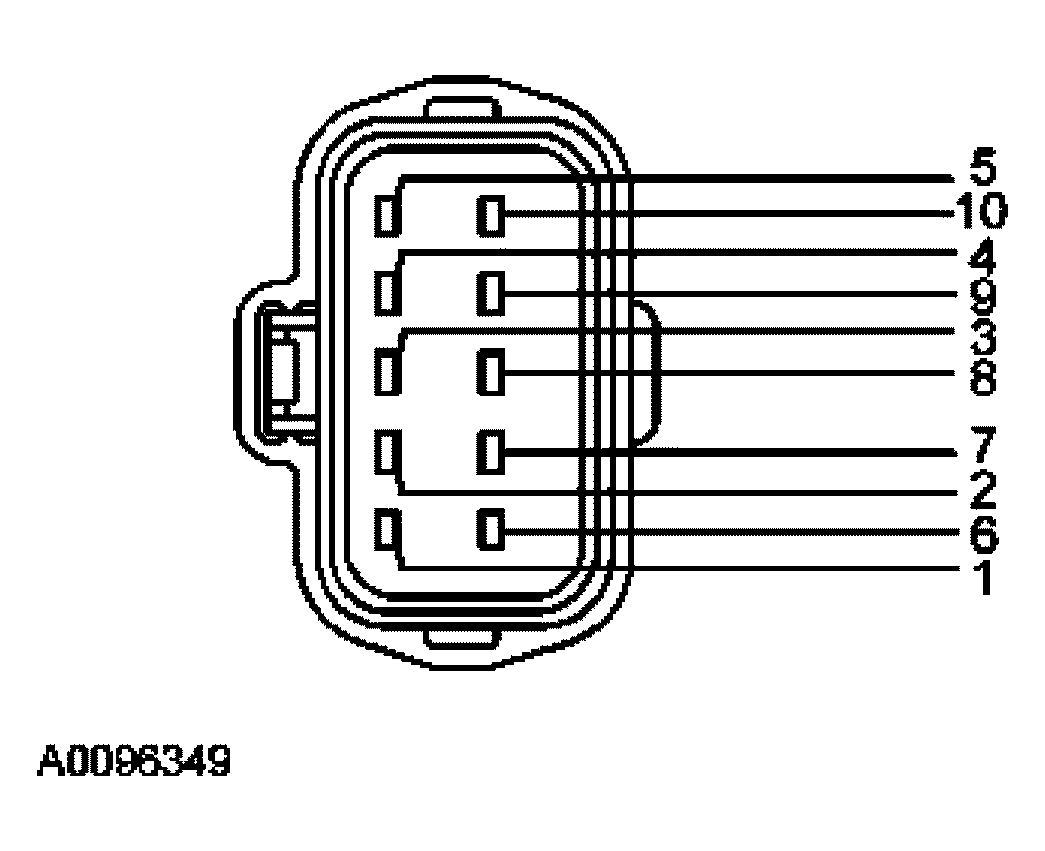

Fig 2: Identifying Transaxle Connector C1458B
G04586852Courtesy of FORD MOTOR CO.
TCM INPUTS

TCM Inputs TCM Pin / PID only Measured / PID Values Units Measured / PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
ISDN 1 A6 VBAT / CHARGE VBAT / CHARGE VBAT / CHARGE VBAT / CHARGE DCV / CHARGE
CTO / ENG_CTO B1 0 / 0 36 / 1050-1100 (N) 42 / 1250 (N) 65-75 / 1950-2100(N) Hz / RPM
MSDN B5 62 0 (M) 62 62 Hz
ISDN 2 B7 VBAT / CHARGE VBAT / CHARGE VBAT / CHARGE VBAT / CHARGE DCV / CHARGE
GSDN B10 62 0 (L) 62 62 Hz
ABS_STAT PID NOT ACTIVATED NOT ACTIVATED NOT ACTIVATED NOT ACTIVATED ACTIVATED / NOT ACTIVATED
ARPMDES PID 0 1050-1100 1250-1350 1950-2100 RPM
CONTACT PID CLOSED CLOSED CLOSED CLOSED OPEN / CLOSED
GCLTEMP PID 70-170 70-170 70-170 70-170 DEG
GENMODE PID TORQUE SPEED SPEED SPEED MODE
GTQ_OUT PID 0 (-)5 - 0 (-)12 - (-)10 (-)25 - (-)20 Lb-ft
G_INV_V PID 300-350 300-350 300-350 300-350 DCV
G_PHTMP PID 95-115 95-115 95-115 95-115 DEG
G_SDN_A PID OFF ON (L) OFF OFF ON-OFF
G_SDN_C PID OFF ON (L) OFF OFF ON-OFF
G_SPEED PID 0 3600-3700 (-)550 (-)2700 - (-) 2500 RPM
HVBAT_V PID 300-350 300-350 300-350 300-350 DCV
HVINTLCK PID OFF OFF OFF OFF ON-OFF
HV_AMP PID 0 (-)10-0 0-2 0-2 AMP
MCLTEMP PID 70-170 70-170 70-170 70-170 DEG
MECT PID 70-170 70-170 70-170 70-170 DEG
MTQ_CMD PID 0 0 (-)2 (-)6 Lb-ft
M_INV_V PID 300-350 300-350 300-350 300-350 DCV
M_PHTEMP PID 70-170 70-170 70-170 70-170 DEG
M_SDN_A PID OFF ON(M) OFF OFF ON-OFF
M_SDN_C PID OFF ON(M) OFF OFF ON-OFF
M_SPEED PID 0 0 3900-4000 7000 RPM
PRNDL_T PID PARK (H) PARK (H) DRIVE (Q) DRIVE (Q) SHIFTER POSITION
RPM PID 0 1050-1100 1250-1350 1950-2100 RPM
TFT PID 70-170 70-170 70-170 70-170 DEG
TORQUE PID 550-620 20-120 280-310 670 LB-FT
TQ_DSD PID 0 0 93 210-230 Nm
VEHMODE PID READY DRIVING DRIVING DRIVING MODE
VSS PID 0 0 30 55 km/h
TCM OUTPUTS

TCM Outputs TCM Pin / PID only Measured / PID Values   Units Measured / PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
TMAC / MTQ_OUT B4 300 / 0 295-300 / (-) 5-0 295-300 / (-)5-0 295-300 / (-)5-0 Hz / Nm
TGAC / GTQ_CMD B9 300 / 0 295-300 / (-) 5-0 270-300 / (-)22-0 270-300 / (-)22-0 Hz / Nm
TCM_CAU PID OFF ON (J) OFF OFF ON / OFF
TCM_HAZ PID OFF ON (K) OFF OFF ON / OFF
OTHER DIAGNOSTIC PID REFERENCE

Other PCM Pin / PID only Measured / PID Values Units Measured / PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
PSR A4 / A5 VBAT VBAT VBAT VBAT DCV
B+ A12 VBAT VBAT VBAT VBAT DCV
VBAT PID VBAT VBAT VBAT VBAT DCV
TBCM OUTPUTS

TBCM Outputs PID only PID Values PID
KOEO Hot Idle 48 KM/H (30 MPH) 89 KM/H (55 MPH)
BAT_SOC PID 40-60 40-60 40-60 40-60 %
