Instrument Panel Upper Section

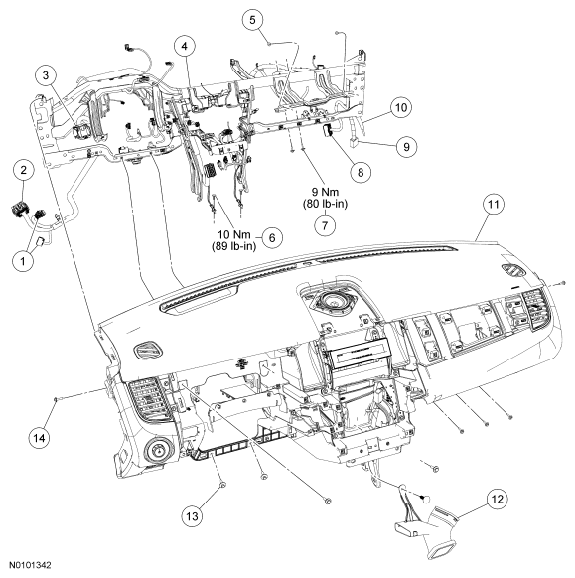

Fig 1: Exploded View Of Instrument Panel Upper Section With Torque Specifications
G06254707Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14401 Smart Junction Box (SJB) electrical connectors
2 14401 Instrument panel lower LH bulkhead electrical connector
3 14401 Instrument panel upper LH bulkhead electrical connector
4 04545 In-vehicle crossbeam
5 W707607 Instrument panel rear screw (2 required)
6 W706281 Ground wire bolt
7 W705583 Passenger side air bag-to-crossbeam bolt (2 required)
8 14401 Instrument panel RH bulkhead electrical connector
9 14401 Satellite radio connector
10 14401 Antenna cable
11 04320 Instrument panel upper section
12 19B680 Console duct Y adapter
13 W707628 Instrument panel front screw (7 required)
14 W707628 Instrument panel side screw (2 required)
