Safety Canopy Module: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

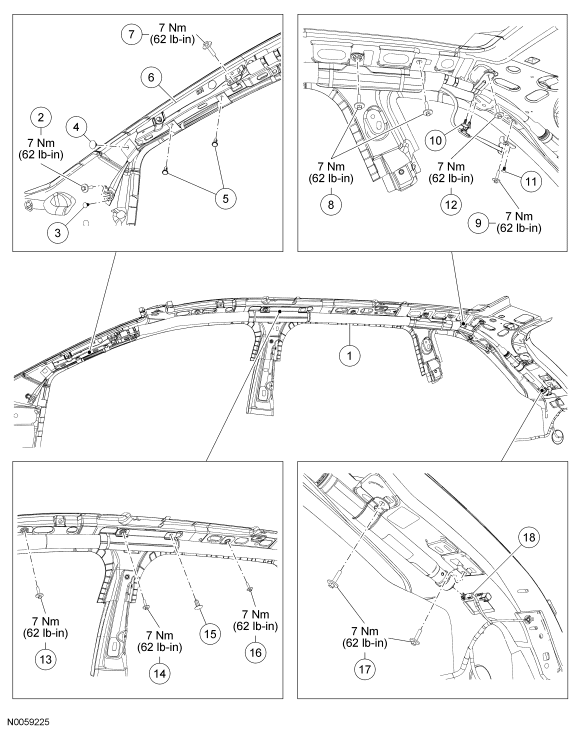

RH safety canopy module shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 042D94 | Safety canopy module |
| 2 | N807151 | Safety canopy module front tether cord anchor bolt |
| 3 | - | Safety canopy module front tether cord anchor pin-type retainer (part of 042D94) |
| 4 | - | Safety canopy module front tether cord A-pillar routing pin-type retainer (part of 042D94) |
| 5 | - | Safety canopy module front tether cord A-pillar trim bracket routing pin-type retainers (2 required) (part of 042D94) |
| 6 | - | A-pillar trim bracket |
| 7 | N807151 | Safety canopy module A-pillar trim bracket bolt |
| 8 | N807151 | Safety canopy module C-pillar bolts (2 required) |
| 9 | N807151 | Safety canopy module rear tether cord anchor bracket bolt |
| 10 | - | Safety canopy module rear tether cord routing clip pin-type retainer (part of 042D94) |
| 11 | - | Safety canopy module rear tether cord anchor bracket pin-type retainer (part of 042D94) |
| 12 | N807151 | Safety canopy module D-pillar bolt |
| 13 | N807151 | Safety canopy module front door opening bolt |
| 14 | N807151 | Safety canopy module B-pillar bolt |
| 15 | - | Safety canopy module B-pillar pin-type retainer (part of 042D94) |
| 16 | N807151 | Safety canopy module rear door opening bolt |
| 17 | N807151 | Safety canopy module rear bolts (2 required) |
| 18 | - | Safety canopy module electrical connector (part of 14A005) |
