Side Air Bag Module: Notes
WARNING: This page is about a different car, the 2012 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

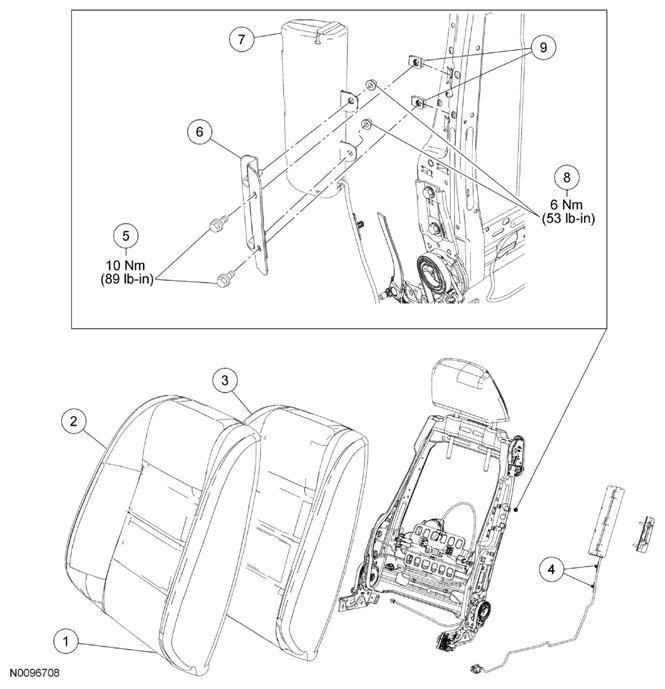

Low back shown in illustration, high back similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat back cover J-clip and pin-type retainer (part of 64417) |
| 2 | 64417 | Seat back cover |
| 3 | 64810 | Seat back foam pad |
| 4 | - | Side air bag module electrical wiring pin-type retainers (part of 611D10) |
| 5 | N605892 | Side air bag module bolts (2 required) |
| 6 | 611D79 | Side air bag module bracket |
| 7 | 611D10 | Side air bag module |
| 8 | - | Side air bag module-to-bracket nuts (part of 611D10) (2 required) |
| 9 | W520822 | U-nuts |
