Trailer Brake Control (TBC) Module: Notes

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

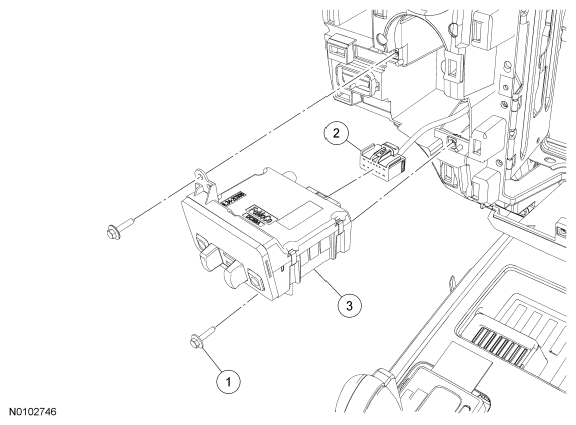

Fig 1: Identifying Trailer Brake Control (TBC) Module Replacement Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707628	Trailer Brake Control (TBC) module bolt (2 required)
2	-	TBC module electrical connector (part of 14401)
3	2C006	TBC module
