Anti-Lock Brake System (Abs) Module Connector End View (C135)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

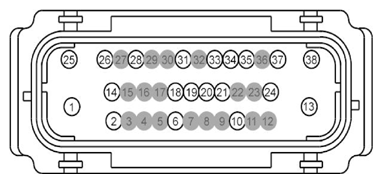

Fig 1: Anti-Lock Brake System (ABS) Module Connector End View (C135)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	SBB47 (WH-RD)	10	FUSE - 47 OR CIRCUIT BREAKER
2	CCA22 (GY-YE)	18	CTRL MOD. - SOLENOID IVD ACTIVE BOOSTER
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	RCA19 (VT)	18	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	VCA22 (GN-BN)	18	CTRL MOD. - SOLENOID IVD ACTIVE BOOSTER
11	*	*	Not Used
12	*	*	Not Used
13	GD121 (BK-YE)	10	GROUND - FENDER FRONT LEFT # 2ND STUD
14	VDB05 (WH)	18	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
15	*	*	Not Used
16	*	*	Not Used
17	*	*	Not Used
18	VCA05 (GY-VT)	18	SENSOR - WHEEL SPEED RIGHT FRONT
19	VCA06 (WH-OG)	18	SENSOR - WHEEL SPEED RIGHT REAR
20	RCA18 (BN-GN)	18	CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR
21	VCA03 (VT-WH)	18	SENSOR - WHEEL SPEED LEFT FRONT
22	*	*	Not Used
23	*	*	Not Used
24	VCA24 (GN-OG)	20	CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS LOW
25	SBB36 (GN-RD)	14	FUSE - 36 OR CIRCUIT BREAKER
26	VDB04 (WH-BU)	18	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
27	*	*	Not Used
28	GD120 (BK-GN)	18	GROUND - FENDER FRONT LEFT
29	*	*	Not Used
30	*	*	Not Used
31	RCA20 (BN)	18	CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR
32	*	*	Not Used
33	VCA04 (BU-OG)	18	SENSOR - WHEEL SPEED LEFT REAR
34	RCA17 (YE)	18	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT
35	CBB54 (VT-OG)	18	FUSE - 54 OR CIRCUIT BREAKER
36	*	*	Not Used
37	VCA23 (BU-WH)	18	CTRL MOD. - SENSOR YAW ABS/IVD/TC CAN BUS HIGH
38	GD121 (BK-YE)	14	GROUND - FENDER FRONT LEFT # 2ND STUD

Available Pigtail Kits
Pigtail Kit Part Number WPT-1234	Service Part Number: BU2Z-14S411-BAA Gauge: 12 20 Pin material: Tin & Silver Cavities: 38 Vehicle Uses Module - Anti-Lock Brake System
