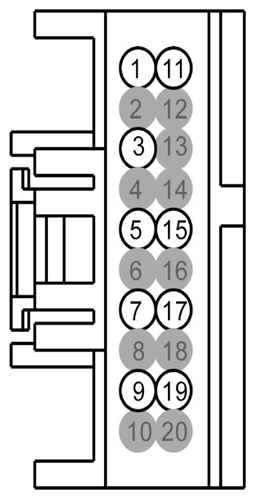

Audio Digital Signal Processing (DSP) Module Connector End View (C3154A)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VDB13 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS HIGH | |
| 2 | * | * | Not Used | |
| 3 | SME23 (VT-RD) | 22 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER ENABLE | |
| 4 | * | * | Not Used | |
| 5 | VME80 (VT-GN) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) | |
| 6 | * | * | Not Used | |
| 7 | VME17 (GN) | 22 | CTRL MOD. - AUDIO # RADIO LEFT | |
| 8 | * | * | Not Used | |
| 9 | VME18 (VT) | 22 | CTRL MOD. - AUDIO # RADIO RIGHT | |
| 10 | * | * | Not Used | |
| 11 | VDB14 (VT-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS LOW | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | RME80 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) | |
| 16 | * | * | Not Used | |
| 17 | RME17 (GY) | 22 | CTRL MOD. - AUDIO # RADIO LEFT | |
| 18 | * | * | Not Used | |
| 19 | RME18 (YE) | 22 | CTRL MOD. - AUDIO # RADIO RIGHT | |
| 20 | * | * | Not Used |
| Available Pigtail Kits | |
|---|---|

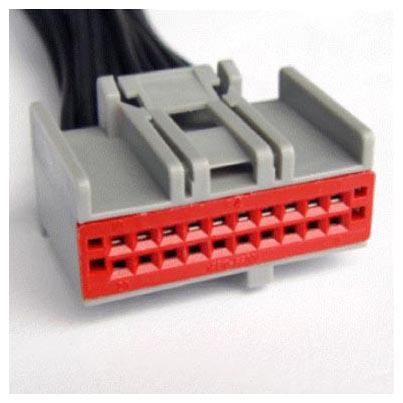

| Pigtail Kit Part Number WPT-1199 | Service Part Number: 3U2Z-14S411-FCB Gauge: 18 Pin material: Silver Cavities: 20 Vehicle Uses
|

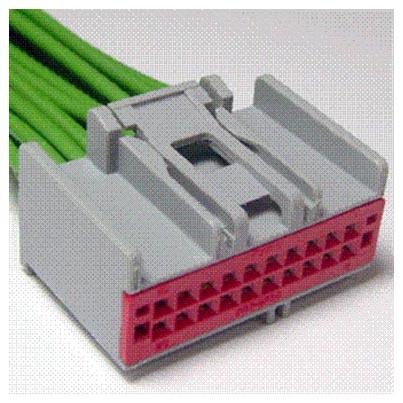

| Pigtail Kit Part Number WPT-255 | Service Part Number: 3U2Z-14S411-FCA Gauge: 18 Pin material: Tin Cavities: 20 Vehicle Uses
|
