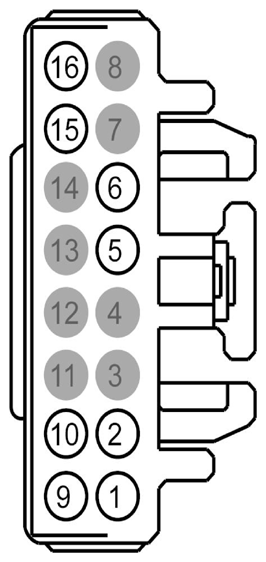

Audio Digital Signal Processing (DSP) Module Connector End View (C3154C)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VME22 (VT-GN) | 20 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO + | |
| 2 | VME01 (GN-VT) | 20 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | SBP19 (BU-RD) | 16 | FUSE - 19 OR CIRCUIT BREAKER | |
| 6 | SBP19 (BU-RD) | 16 | FUSE - 19 OR CIRCUIT BREAKER | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | RME22 (GN-WH) | 20 | CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO - | |
| 10 | RME01 (GY) | 20 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | GD148 (BK-YE) | 16 | GROUND - PILLAR C RIGHT | |
| 16 | GD148 (BK-YE) | 16 | GROUND - PILLAR C RIGHT |

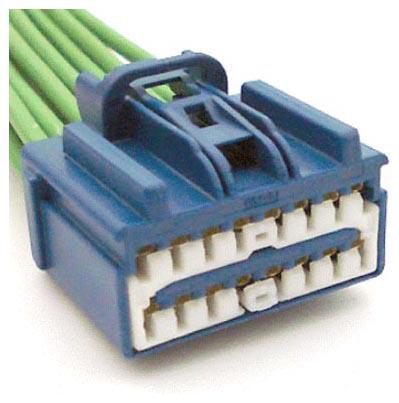

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-959 | Service Part Number: 3U2Z-14S411-BDAB Gauge: 14 Pin material: Silver Cavities: 16 Vehicle Uses
|
