Body Control Module (BCM) Connector End View (C2280D)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

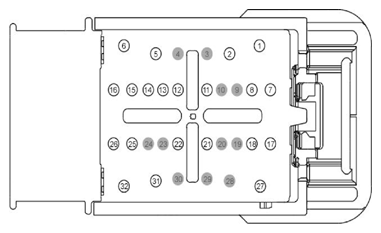

Fig 1: Body Control Module Connector End View (C2280D)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP03 (BU-RD)	14	FUSE - 3 OR CIRCUIT BREAKER
2	SBP05 (GY-RD)	16	FUSE - 5 OR CIRCUIT BREAKER	w/memory
3	*	*	Not Used
4	*	*	Not Used
5	SBP02 (YE-RD)	18	FUSE - 2 OR CIRCUIT BREAKER
6	SBP01 (RD)	14	FUSE - 1 OR CIRCUIT BREAKER
7	CBP33 (WH-BN)	20	FUSE - 33 OR CIRCUIT BREAKER	heated seats
7	CBP33 (WH-BN)	22	FUSE - 33 OR CIRCUIT BREAKER	rear heated seats
8	CBP34 (VT-BN)	22	FUSE - 34 OR CIRCUIT BREAKER
9	*	*	Not Used
10	*	*	Not Used
11	SBP07 (WH-RD)	22	FUSE - 7 OR CIRCUIT BREAKER	offline
11	SBP07 (WH-RD)	20	FUSE - 7 OR CIRCUIT BREAKER	online
12	CLS18 (GY-BN)	20	CTRL MOD. - STOP/TURN LEFT (INBOARD)
13	CLS28 (BU-WH)	18	CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC)
14	CLS52 (BN)	20	CTRL MOD. - STOP/TURN RIGHT MIDDLE
15	CLS19 (VT-OG)	18	CTRL MOD. - STOP/TURN RIGHT (INBOARD)
16	GD139 (BK-YE)	16	GROUND - COWL SIDE/PILLAR A RIGHT # 2ND POINT (6L2T)
17	CBP32 (GN-VT)	18	FUSE - 32 OR CIRCUIT BREAKER
18	CBP40 (YE-GN)	18	FUSE - 40 OR CIRCUIT BREAKER
19	*	*	Not Used
20	*	*	Not Used
21	CPL51 (BU-GN)	18	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK
22	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
23	*	*	Not Used
24	*	*	Not Used
25	GD133 (BK)	20	GROUND - COWL SIDE/PILLAR A RIGHT # 2ND POINT (6L2T)
26	CPL11 (GY-BN)	16	CTRL MOD. - DOOR LOCK # ALL LOCK
27	CBP01 (BU)	12	FUSE - 48 OR CIRCUIT BREAKER
28	*	*	Not Used
29	*	*	Not Used
30	*	*	Not Used
31	CPL52 (VT-GY)	18	CTRL MOD. - DOOR LOCK # PASSENGER DOORS UNLOCK (ALL EXCLUDING DRIVER)
31	CPL52 (VT-GY)	16	CTRL MOD. - DOOR LOCK # PASSENGER DOORS UNLOCK (ALL EXCLUDING DRIVER)	Super Crew
32	SBP19 (BU-RD)	14	FUSE - 19 OR CIRCUIT BREAKER	SONY sound
