Body Control Module (BCM) Connector End View (C2280F)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

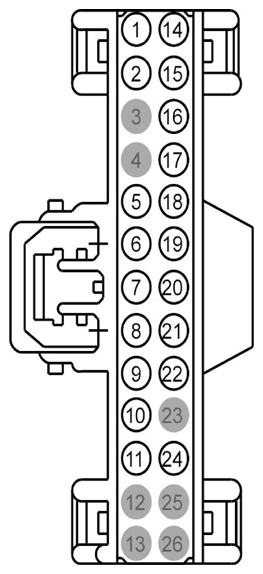

Fig 1: Body Control Module Connector End View (C2280F)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	RMC19 (YE-GY)	20	SWITCH - LOW LEVEL BRAKE FLUID (CONTINUITY CHECK)
2	CPL25 (BU-OG)	20	SWITCH - HOOD # AJAR
3	*	*	Not Used
4	*	*	Not Used
5	CE436 (VT-OG)	20	CTRL MOD. -WAKE UP PCM
6	CE226 (YE-VT)	20	FUEL VOLUME REGULATOR (FVR)
7	CLS25 (YE-VT)	18	CTRL MOD. - TURN LAMP RIGHT FRONT
8	CLS21 (BU-GN)	18	CTRL MOD. - TURN LAMP LEFT FRONT
9	CLS21 (BU-GN)	22	CTRL MOD. - TURN LAMP LEFT FRONT
10	CLS25 (YE-VT)	22	CTRL MOD. - TURN LAMP RIGHT FRONT
11	CDC64 (WH-BU)	20	RELAY - RUN; ACCESSORY
12	*	*	Not Used
13	*	*	Not Used
14	RDC59 (GY-BN)	20	CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR
15	CMC19 (GY-VT)	20	SWITCH - LOW LEVEL BRAKE FLUID
16	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
17	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
18	CDC55 (BN-VT)	20	RELAY - RUN; START
19	CBP31 (BU-OG)	20	FUSE - 31 OR CIRCUIT BREAKER
20	SDC57 (BU-OG)	20	CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR
21	LDC59 (BU-WH)	20	CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR
22	CDC66 (BN-YE)	20	CTRL MOD. - RELAY ENERGY MANAGEMENT
23	*	*	Not Used
24	CLN09 (YE-GN)	18	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
25	*	*	Not Used
26	*	*	Not Used

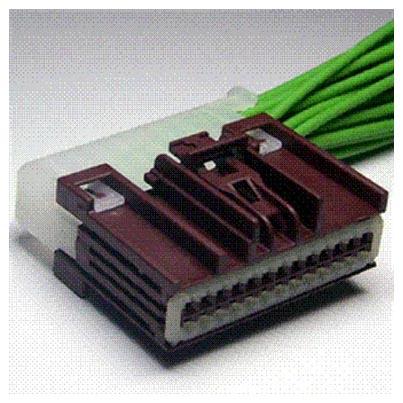

Available Pigtail Kits
Pigtail Kit Part Number WPT-1291	Service Part Number: CU2Z-14S411-ASA Gauge: 20 Pin material: Silver Cavities: 26 Vehicle Uses Control Head - Electronic Automatic Temperature (EATC) Module - Body Control Module - Electronic Automatic Temperature Control (EATC)
