Body Control Module (BCM) Connector End View (C2280G)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

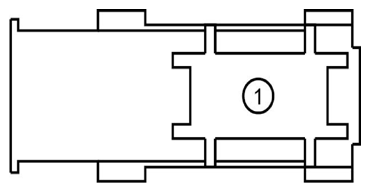

Fig 1: Body Control Module Connector End View (C2280G)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SDC04 (RD)	4	BATTERY- # PLUS
