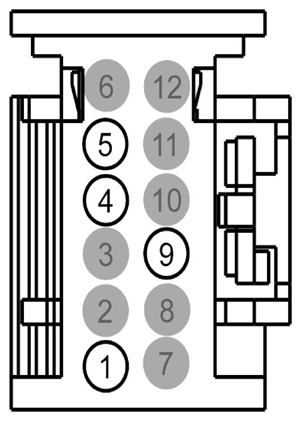

Front Control/Display Interface Module (FCDIM) Connector End View (C2614)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP09 (RD) | 22 | FUSE - 9 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | VDB13 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS HIGH | |
| 5 | VDB14 (VT-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS LOW | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | GD114 (BK-BU) | 22 | GROUND - CROSS CAR BEAM | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used |
