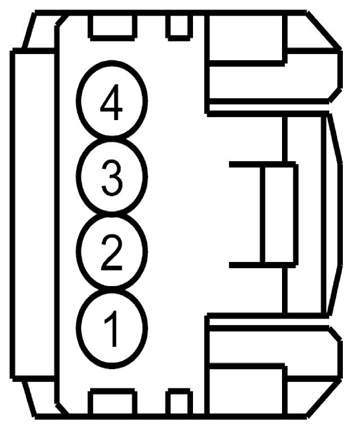

Front Controls Interface Module (FCIM) Connector End View (C2402)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP09 (RD) | 20 | FUSE - 9 OR CIRCUIT BREAKER | |
| 2 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 3 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 4 | GD133 (BK) | 20 | GROUND - PILLAR A LEFT |
| Available Pigtail Kits | |
|---|---|

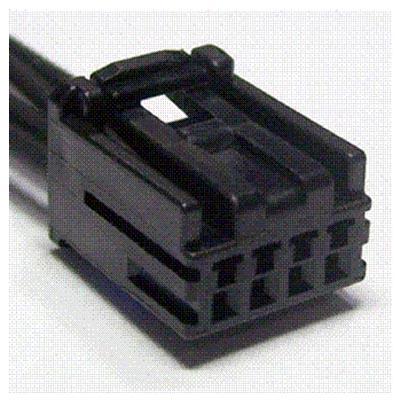

| Pigtail Kit Part Number WPT-1102 | Service Part Number: AU2Z-14S411-BAA Gauge: 20 Pin material: Tin Cavities: 4 Vehicle Uses
|
