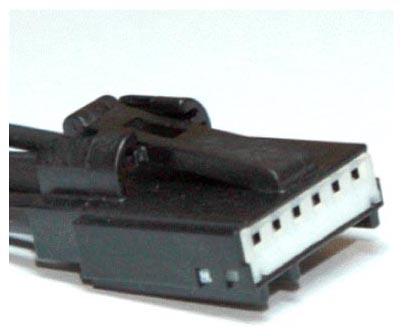

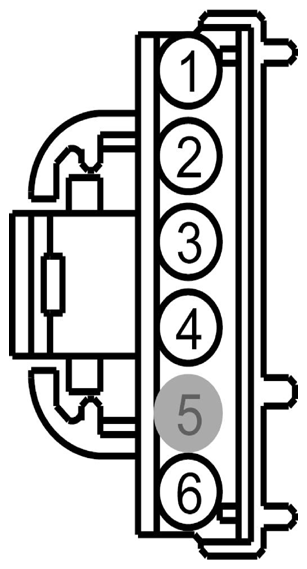

Front Controls Interface Module (FCIM) Connector End View (C2403)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP09 (RD) | 22 | FUSE - 9 OR CIRCUIT BREAKER | |
| 2 | VDB13 (BU-GY) | 22 | CTRL MOD. - MULTIMEDIA CAN BUS HIGH | |
| 3 | VDB14 (VT-GY) | 20 | CTRL MOD. - MULTIMEDIA CAN BUS LOW | |
| 4 | CLS32 (BN-YE) | 22 | SWITCH - HAZARD | |
| 5 | * | * | Not Used | |
| 6 | GD133 (BK) | 20 | GROUND - COWL SIDE/PILLAR A LEFT |
| Available Pigtail Kits | |
|---|---|

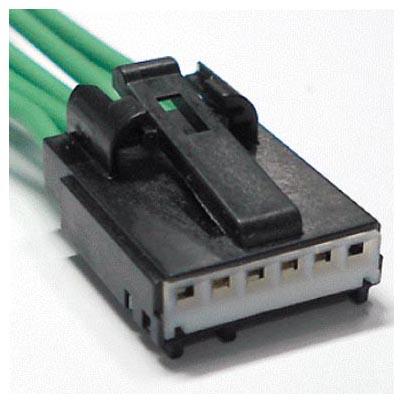

| Pigtail Kit Part Number WPT-1006 | Service Part Number: 7U2Z-14S411-NB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses
|
| Pigtail Kit Part Number WPT-895 | Service Part Number: 7U2Z-14S411-NA Gauge: 18 Pin material: Tin Cavities: 6 Vehicle Uses
|
