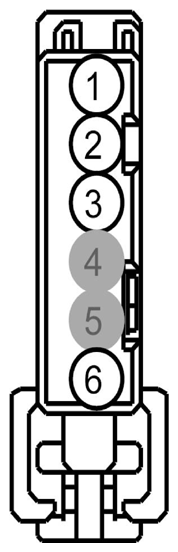

Global Positioning System Module (GPSM) Connector End View (C2398)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP09 (RD) | 18 | FUSE - 9 OR CIRCUIT BREAKER | |
| 2 | VDB06 (GY-OG) | 18 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 3 | VDB07 (VT-OG) | 18 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | GD114 (BK-BU) | 20 | GROUND - CROSS CAR BEAM |
| Available Pigtail Kits | |
|---|---|

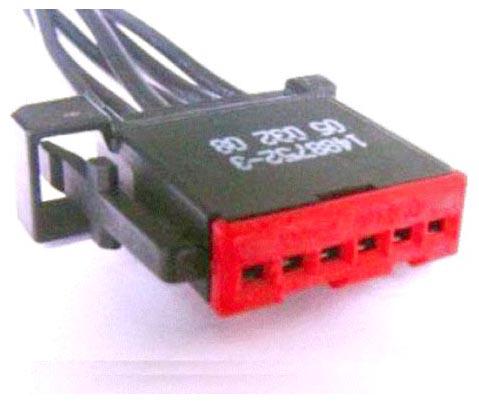

| Pigtail Kit Part Number WPT-873 | Service Part Number: 6U2Z-14S411-LA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses
|

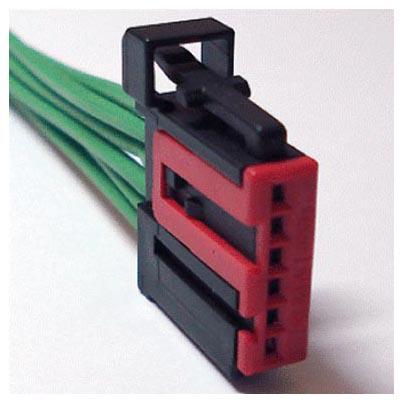

| Pigtail Kit Part Number WPT-958 | Service Part Number: 6U2Z-14S411-LB Gauge: 18 20 Pin material: Tin & Silver Cavities: 6 Vehicle Uses
|
