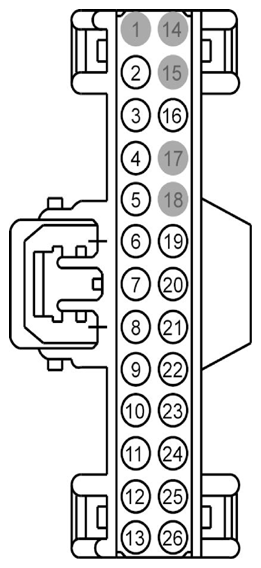

HVAC Module, EMTC Connector End View (C294A)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | CH207 (BU) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1/CLOSE (IF PLUS) | |
| 3 | CH208 (GN) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2/OPEN (IF PLUS) | |
| 4 | VH414 (GN-BU) | 22 | SENSOR - INCAR TEMP. | |
| 5 | VH413 (WH-BU) | 22 | SENSOR - HUMIDITY | |
| 6 | CH229 (WH) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 2/OPEN (IF PLUS) | |
| 7 | CH228 (YE) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 1/CLOSE (IF PLUS) | |
| 8 | CH239 (BU-WH) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2/OPEN (IF PLUS) | |
| 9 | CH238 (YE-OG) | 22 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1/CLOSE (IF PLUS) | |
| 10 | GD133 (BK) | 20 | GROUND - PILLAR A LEFT | |
| 11 | CH123 (VT) | 26 | CTRL MOD. - BLOWER MOTOR RELAY | |
| 12 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 13 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | VH438 (GN) | 26 | SENSOR - DOOR POSITION RECIRC. | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | VH406 (VT) | 26 | SENSOR - A/C EVAPORATOR TEMPERATURE (ACET) | |
| 20 | VH440 (BU) | 26 | SENSOR - DOOR POSITION TEMP. LEFT | |
| 21 | VH436 (YE) | 26 | SENSOR - DOOR POSITION DEFROST | |
| 22 | CH122 (WH-OG) | 22 | CTRL MOD. - CLIMATE # HEATER REAR WINDOW REQUEST | |
| 23 | RH111 (GY-BU) | 22 | CTRL MOD. - GENERIC VREF RETURN | |
| 24 | LH111 (BN-WH) | 26 | CTRL MOD. - GENERIC VREF | |
| 25 | CRD02 (BN) | 26 | CTRL MOD. - RELAY HEATER REAR WINDOW | |
| 26 | SBP46 (BN-RD) | 22 | FUSE - 46 OR CIRCUIT BREAKER |
