Power Steering Control Module (PSCM) Connector End View (C1463A)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

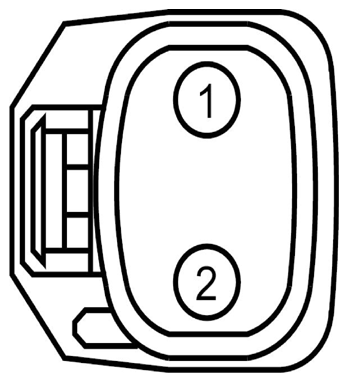

Fig 1: Power Steering Control Module Connector End View (C1463A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD108 (BK-VT)	4	GROUND - FENDER FRONT RIGHT # 3RD STUD
2	SDC02 (RD)	4	BATTERY - # PLUS
