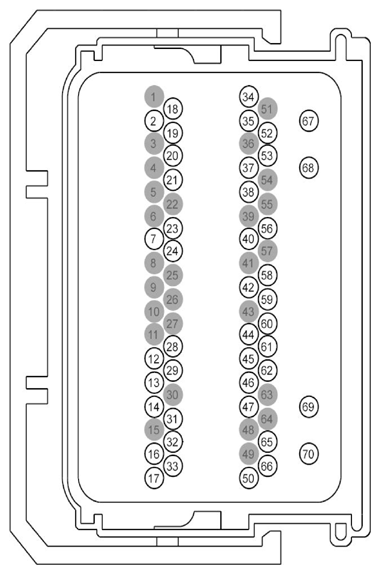

Powertrain Control Module (Pcm) Connector End View (C1381B)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | RE320 (BU) | 20 | CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (SIGRTN) | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | CDC12 (YE) | 20 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | CH302 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY/WOT AC CUTOFF (ACCR) | |
| 13 | CCB08 (VT-WH) | 20 | SWITCH - BRAKE PEDAL POSITION (BPP) NORMAL OPEN | |
| 14 | CDC15 (VT) | 20 | GENERATOR (ALTERNATOR) # LOAD INPUT (GENMON) | |
| 15 | * | * | Not Used | |
| 16 | CDC35 (BU-WH) | 20 | SWITCH - IGNITION # START | |
| 17 | VE750 (GN-BU) | 20 | SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR | |
| 18 | CEC01 (WH-BU) | 20 | CTRL MOD. - COOLING FAN CONTROL (HFC) | |
| 19 | VE225 (YE-OG) | 20 | CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) | |
| 20 | CE114 (GN-BU) | 18 | CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANV) | |
| 21 | CE608 (VT-GN) | 18 | RELAY - FUEL PUMP (VPWR FUEL) | |
| 22 | * | * | Not Used | |
| 23 | CET43 (GY) | 20 | SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) | |
| 24 | CET42 (GN-VT) | 20 | SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) | |
| 25 | * | * | Not Used | |
| 26 | * | * | Not Used | |
| 27 | * | * | Not Used | |
| 28 | VE701 (YE-OG) | 20 | SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) | |
| 29 | VE702 (BU-WH) | 20 | SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) | |
| 30 | * | * | Not Used | |
| 31 | VH433 (VT-OG) | 20 | TRANSDUCER - A/C PRESSURE (ACPT) | |
| 32 | VE518 (BN-WH) | 20 | MONITOR - FUEL PUMP (FPM) | |
| 33 | VDC61 (VT-GN) | 20 | SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR | |
| 34 | CEC02 (GN-BU) | 20 | CTRL MOD. - COOLING FAN CONTROL (LFC) | |
| 35 | CE436 (VT-OG) | 20 | CTRL MOD. -WAKE UP PCM | |
| 36 | * | * | Not Used | |
| 37 | CDC54 (WH-GN) | 20 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) | |
| 38 | CE607 (BN-YE) | 20 | RELAY - ENGINE RUNNING | |
| 39 | * | * | Not Used | |
| 40 | VE807 (YE-VT) | 20 | SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF) | |
| 41 | * | * | Not Used | |
| 42 | CBB53 (GY-BN) | 20 | FUSE - 53 OR CIRCUIT BREAKER (ISP-R) | |
| 43 | * | * | Not Used | |
| 44 | RE136 (VT-GN) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPRTN) | |
| 45 | LE136 (GN-OG) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPVREF) | |
| 46 | CES09 (VT-OG) | 20 | SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) | |
| 47 | VE740 (VT-GY) | 20 | SENSOR - INTAKE AIR TEMPERATURE (IAT2) | |
| 48 | * | * | Not Used | |
| 49 | * | * | Not Used | |
| 50 | GD113 (BK-YE) | 18 | GROUND - COWL RIGHT | |
| 51 | * | * | Not Used | |
| 52 | LE424 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) | |
| 53 | CDC10 (BU-OG) | 20 | CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENCOM) | |
| 54 | * | * | Not Used | |
| 55 | * | * | Not Used | |
| 56 | RE407 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) | |
| 57 | * | * | Not Used | |
| 58 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 59 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 60 | RE137 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2) | |
| 61 | LE137 (BU-GY) | 20 | CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2) | |
| 62 | SBB26 (YE-RD) | 20 | FUSE - 26 OR CIRCUIT BREAKER | |
| 63 | * | * | Not Used | |
| 64 | * | * | Not Used | |
| 65 | VE922 (VT-GN) | 20 | TRANSDUCER - FUEL TANK PRESSURE (FTP) | |
| 66 | LE230 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPREF) | |
| 67 | CBB75 (YE-GY) | 20 | FUSE - 75 OR CIRCUIT BREAKER | 5.0L |
| 67 | CBB75 (YE-GY) | 18 | FUSE - 75 OR CIRCUIT BREAKER | |
| 68 | CBB75 (YE-GY) | 18 | FUSE - 75 OR CIRCUIT BREAKER | |
| 68 | CBB75 (YE-GY) | 20 | FUSE - 75 OR CIRCUIT BREAKER | 5.0L |
| 69 | GD113 (BK-YE) | 16 | GROUND - COWL RIGHT | |
| 70 | GD113 (BK-YE) | 14 | GROUND - COWL RIGHT |
