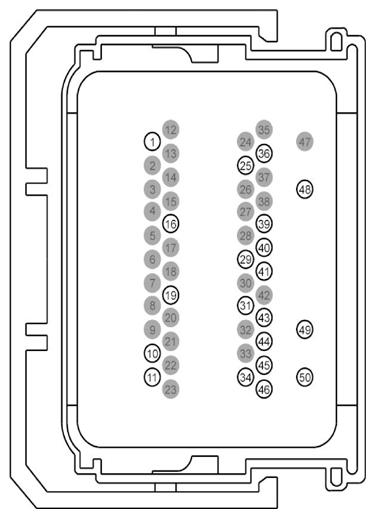

Powertrain Control Module (Pcm) Connector End View (C175T)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | LE111 (VT-GN) | 18 | CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | CET08 (BN-WH) | 18 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (SSD) | |
| 11 | CET18 (GY-YE) | 18 | CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 1 (SSE) | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | VET33 (WH-OG) | 18 | SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | VET27 (BN-YE) | 18 | SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | VET26 (BN-GN) | 18 | SENSOR - OUTPUT SHAFT SPEED (OSS) | |
| 26 | * | * | Not Used | |
| 27 | * | * | Not Used | |
| 28 | * | * | Not Used | |
| 29 | VE731 (YE-GN) | 18 | SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) | |
| 30 | * | * | Not Used | |
| 31 | CET34 (BN-GN) | 20 | SWITCH - TRANSMISSION CONTROL SWITCH (TCS) | |
| 32 | * | * | Not Used | |
| 33 | * | * | Not Used | |
| 34 | CET09 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (LPC) | |
| 35 | * | * | Not Used | |
| 36 | RET24 (BN-BU) | 18 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) | |
| 37 | * | * | Not Used | |
| 38 | * | * | Not Used | |
| 39 | VET32 (VT) | 18 | SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR - P) | |
| 40 | VE733 (WH) | 18 | SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) | |
| 41 | RE405 (GN-WH) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | |
| 42 | * | * | Not Used | |
| 43 | CET06 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (SSB) | |
| 44 | CET07 (GY-OG) | 18 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (SSC) | |
| 45 | CET05 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (SSA) | |
| 46 | CET10 (BU-GY) | 18 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (TCC) | |
| 47 | * | * | Not Used | |
| 48 | CE234 (BU-WH) | 20 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) | |
| 49 | CE233 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) | |
| 50 | CET25 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) |
