Trailer Brake Control (TBC) Module: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

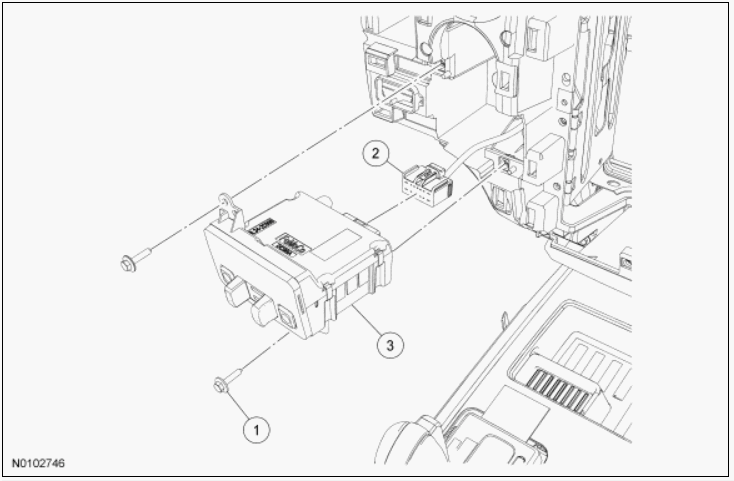

| Item | Part Number | Description |
|---|---|---|
| 1 | W707628 | Trailer Brake Control (TBC) module bolt (2 required) |
| 2 | - | TBC module electrical connector (part of 14401) |
| 3 | 2C006 | TBC module |
