Audio Input Jack: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

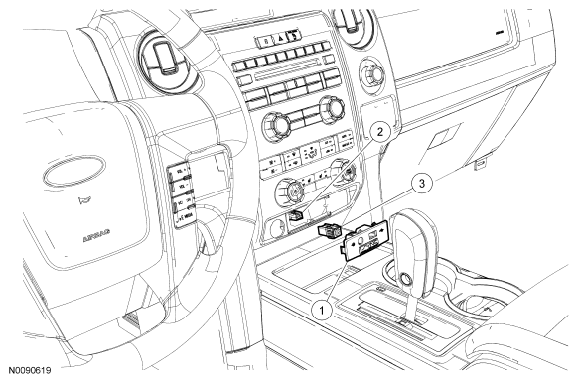

Vehicle with the SYNC® system shown, others similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 19C149 | Audio input jack bezel |
| 2 | - | Audio input jack electrical connector (part of 14401) |
| 3 | 19A164 | Audio input jack |
