Removal and Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The compass module is glued to the headliner.

NOTE: When replacing the compass module, obtain 3M™ Duramix™ 4747 Super Fast Adhesive commercially to attach the compass module to the headliner. The 3M™ Duramix™ 4747 Super Fast Adhesives is a 2-part adhesive in a 50 ml dual-tube applicator.

Remove the headliner. Refer to INTERIOR TRIM AND ORNAMENTATION .

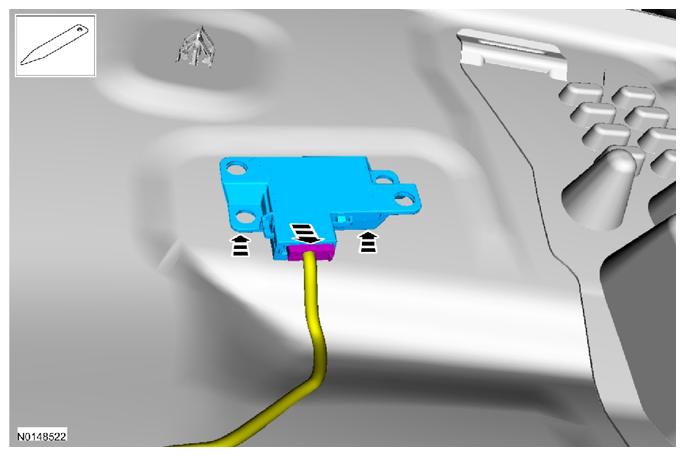

Remove the compass module from the headliner.
- Disconnect the electrical connector.
To install, reverse the removal procedure.
CALIBRATE the compass. Refer to General Procedures in INSTRUMENTATION, MESSAGE CENTER, AND WARNING CHIMES .
