Vehicles Without Navigation
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

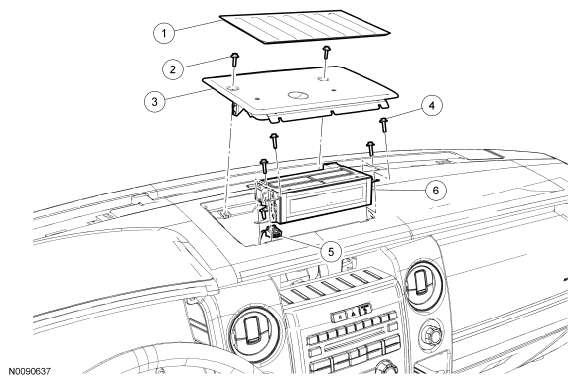

| Item | Part Number | Description |
|---|---|---|
| 1 | 15044G24 | Instrument panel upper bin mat |
| 2 | W707628 | Instrument panel upper bin screws (2 required) |
| 3 | - | Instrument panel upper bin |
| 4 | W707628-S | Front Display Interface Module (FDIM) screws (4 required) |
| 5 | - | FDIM electrical connector (part of 14401) |
| 6 | 10D885 | FDIM |
