Front Brake Caliper: Notes
WARNING: This page is about a different car, the 2007 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada) |
ESA-M6C25-A or WSS-M6C62-A |

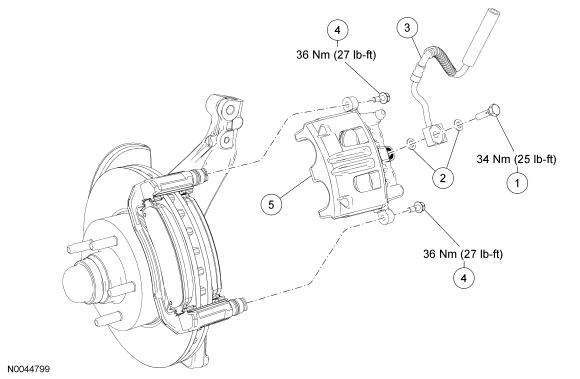

| Item | Part Number | Description |
|---|---|---|
| 1 | N808236 | Brake caliper flow bolt |
| 2 | - | Copper washers (2 required) |
| 3 | 2078 | Front brake hose |
| 4 | 2B296 | Brake caliper pin bolts (2 required) |
| 5 | 2B120 | Brake caliper |
