OEM Ground Distribution: Grounds: G201

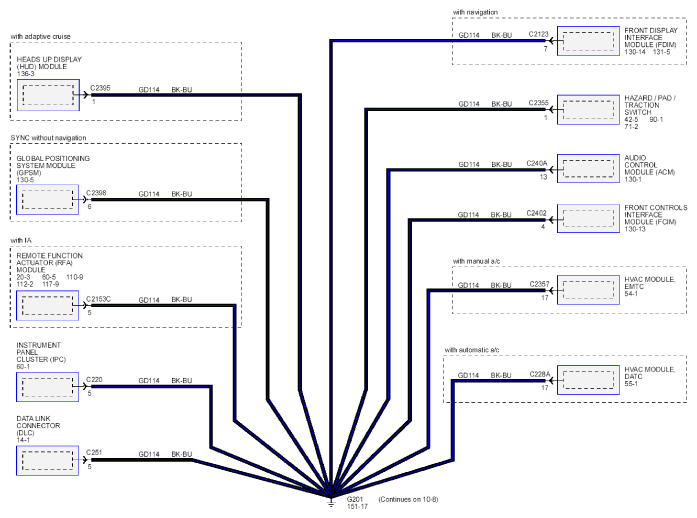

Fig 1: Grounds Circuit Diagram - G201 (1 Of 2)
G07898021Courtesy of FORD MOTOR CO.

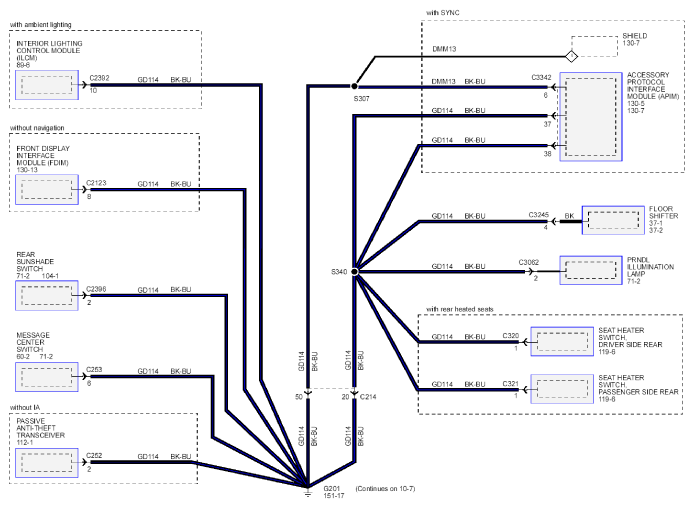

Fig 2: Grounds Circuit Diagram - G201 (2 Of 2)
G07898022Courtesy of FORD MOTOR CO.
