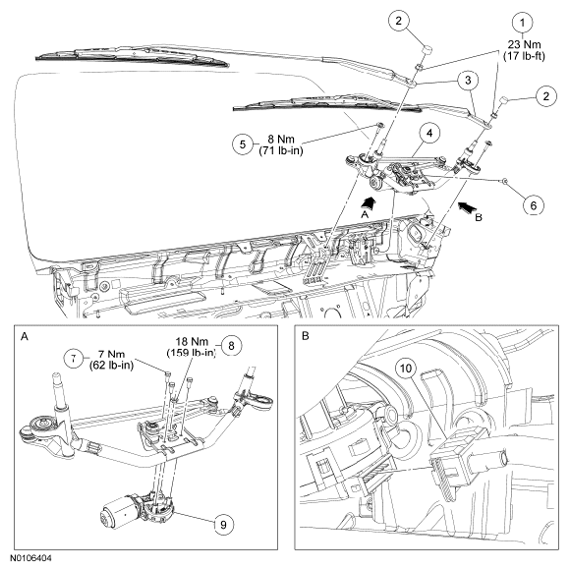

Front Wipers
| Item | Part Number | Description |
|---|---|---|
| 1 | W700202 | Wiper pivot arm nuts (2 required) |
| 2 | 17C526 | Wiper pivot arm nut covers (2 required) |
| 3 | 17526 RH/17527 LH | Wiper pivot arms (2 required) |
| 3 | 17528 | Wiper blades (2 required) |
| 4 | 17K484 | Wiper mounting arm and pivot shaft |
| 5 | W701389 | Wiper mounting arm and pivot shaft bolt (2 required) |
| 6 | W700149 | Wiper mounting arm and pivot shaft bolt |
| 7 | 17D569 | Wiper motor bolt (3 required) |
| 8 | W700202 | Windshield wiper motor arm nut |
| 9 | 17508 | Wiper motor |
| 10 | 14290 | Wiper motor electrical connector |
