Component Location Views

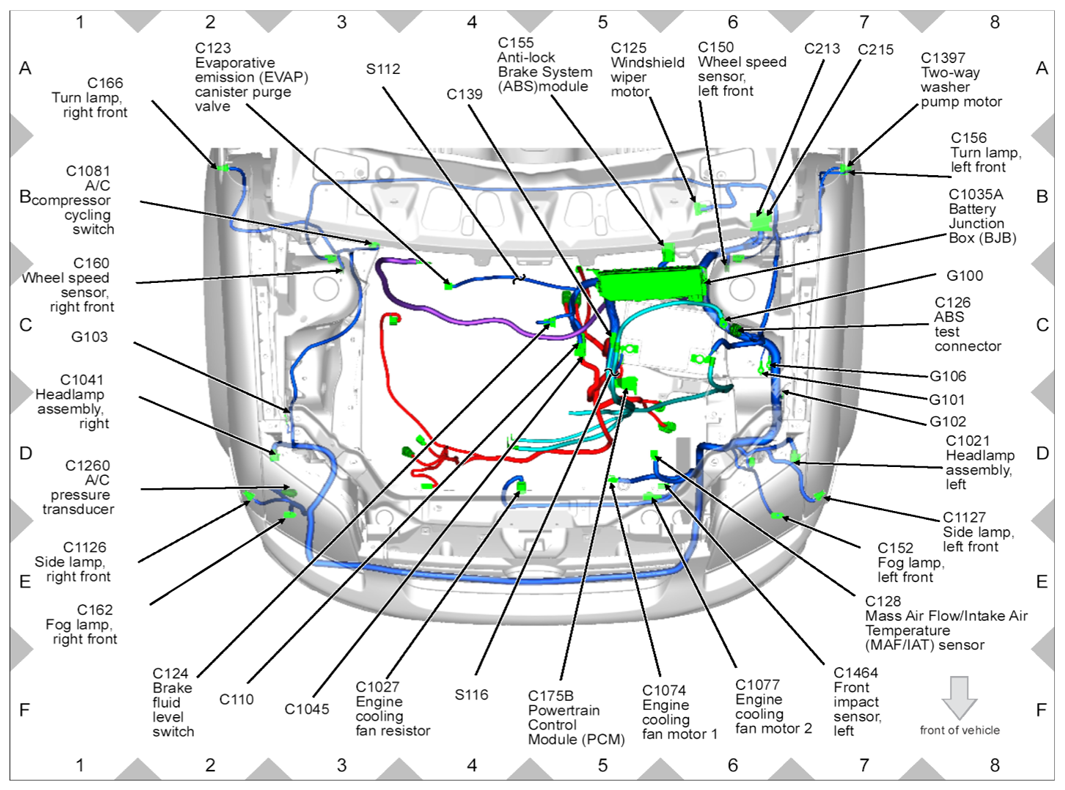

Fig 1: Engine Compartment Wiring Harness Components Location (1 Of 4)

G07909359

Courtesy of FORD MOTOR CO.

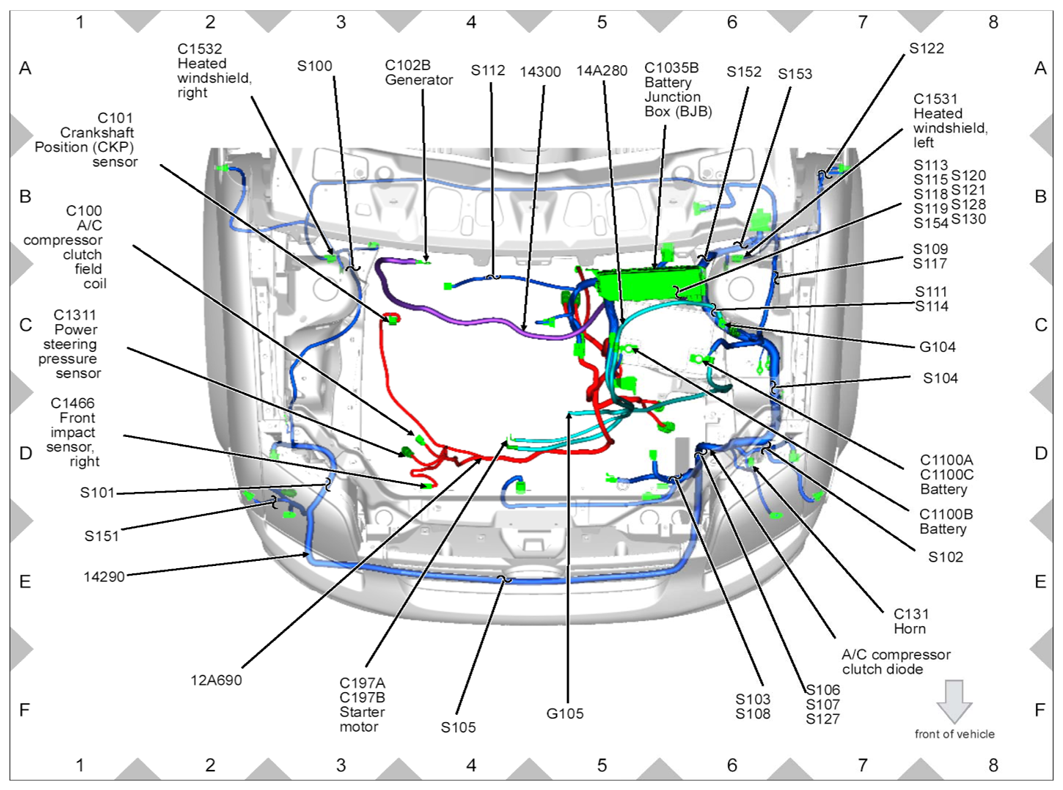

Fig 2: Engine Compartment Wiring Harness Components Location (2 Of 4)

G07909360

Courtesy of FORD MOTOR CO.

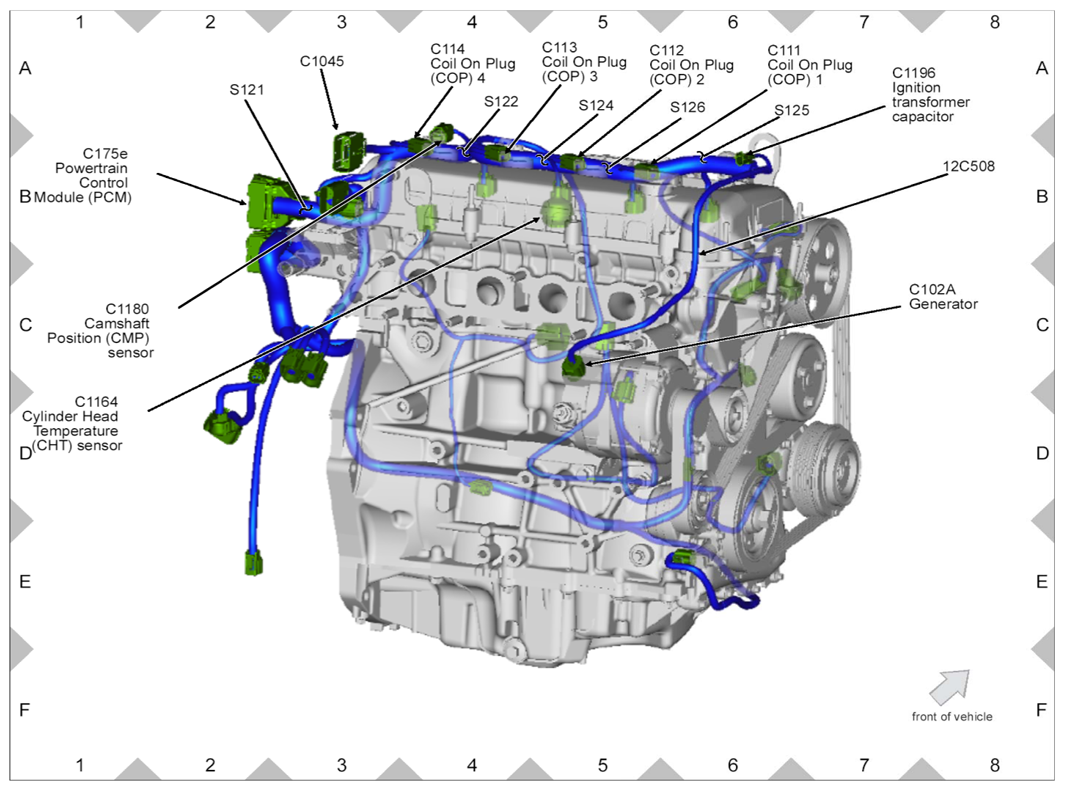

Fig 3: Engine Compartment Wiring Harness Components Location (4 Of 4)

G07909361

Courtesy of FORD MOTOR CO.

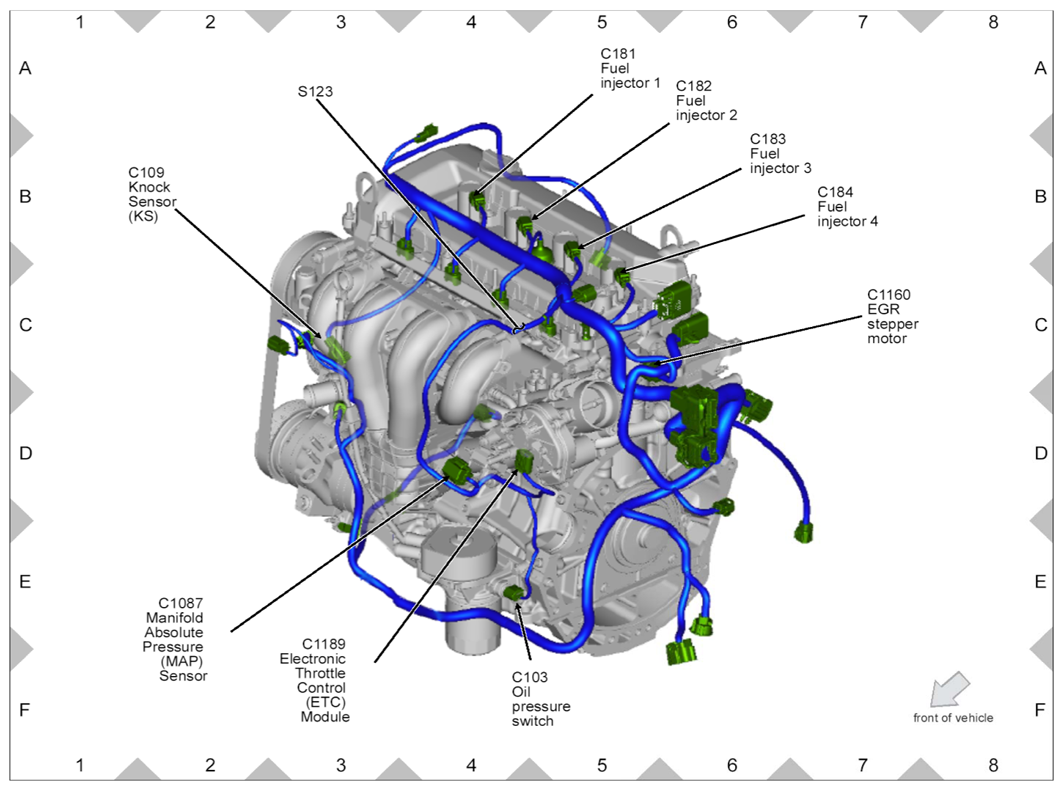

Fig 4: Engine Compartment Wiring Harness Components Location (4 Of 4)

G07909362

Courtesy of FORD MOTOR CO.

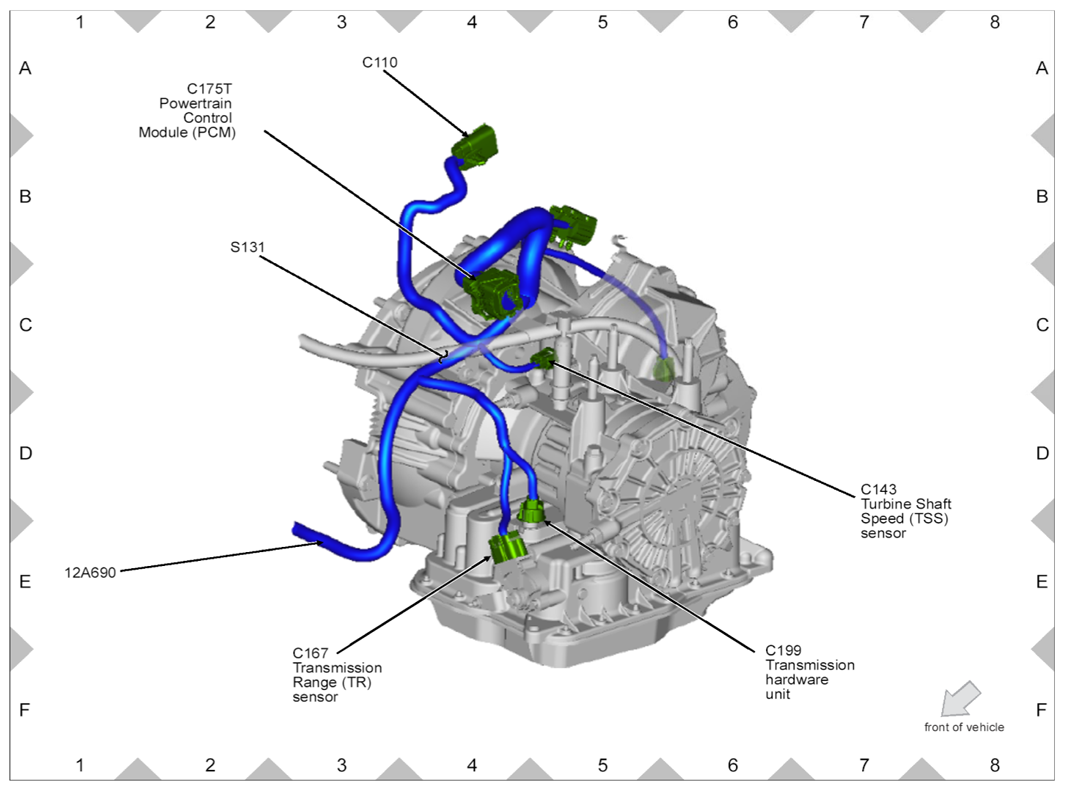

Fig 5: Transmission Wiring Harness Components Location (1 Of 2)

G07909363

Courtesy of FORD MOTOR CO.

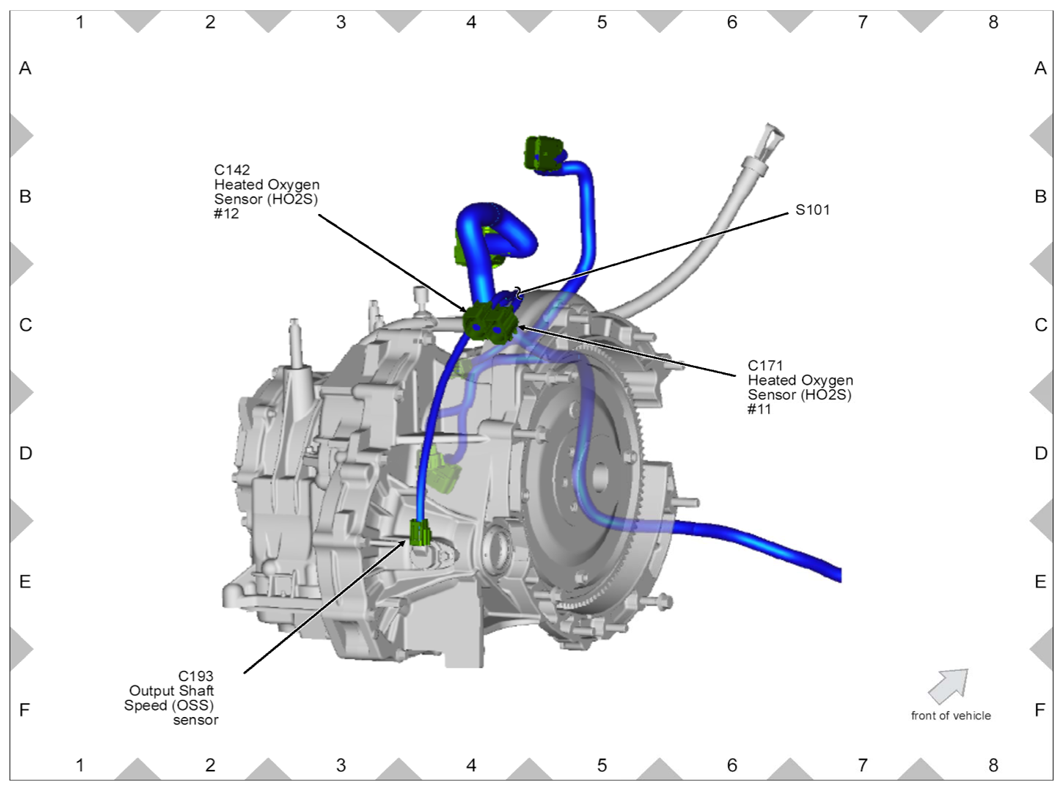

Fig 6: Transmission Wiring Harness Components Location (2 Of 2)

G07909364

Courtesy of FORD MOTOR CO.

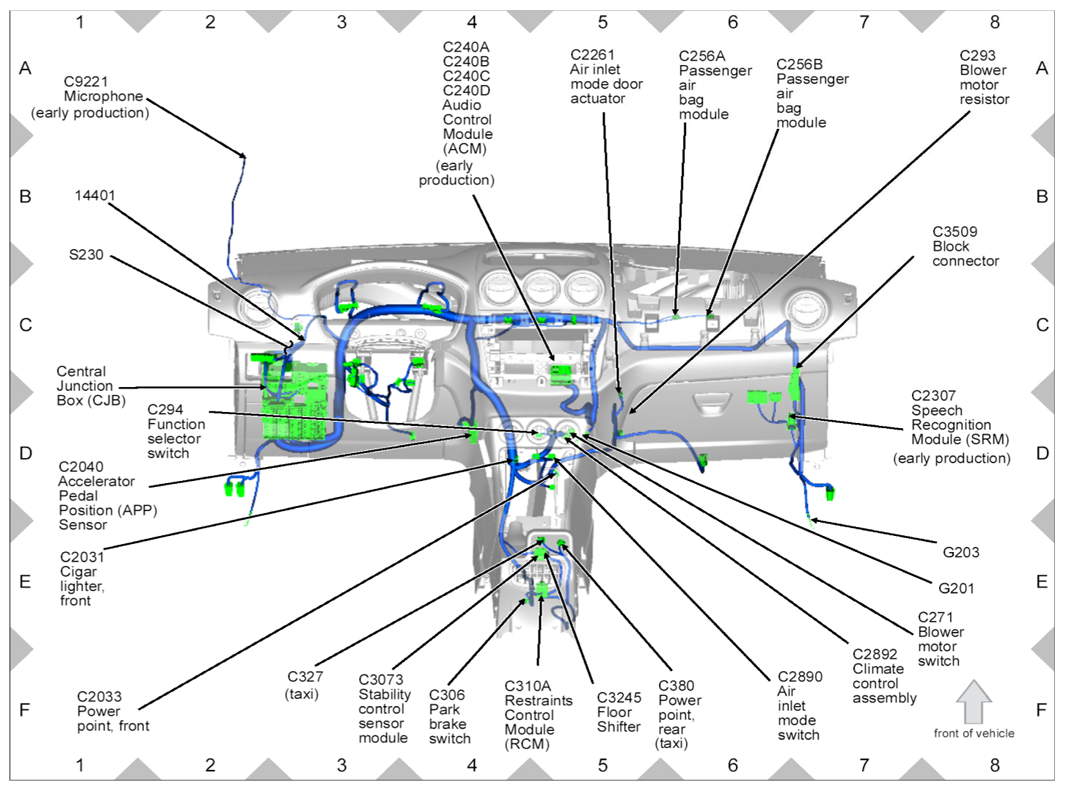

Fig 7: Dash Panel Wiring Harness Components Location (1 Of 3)

G07909365

Courtesy of FORD MOTOR CO.

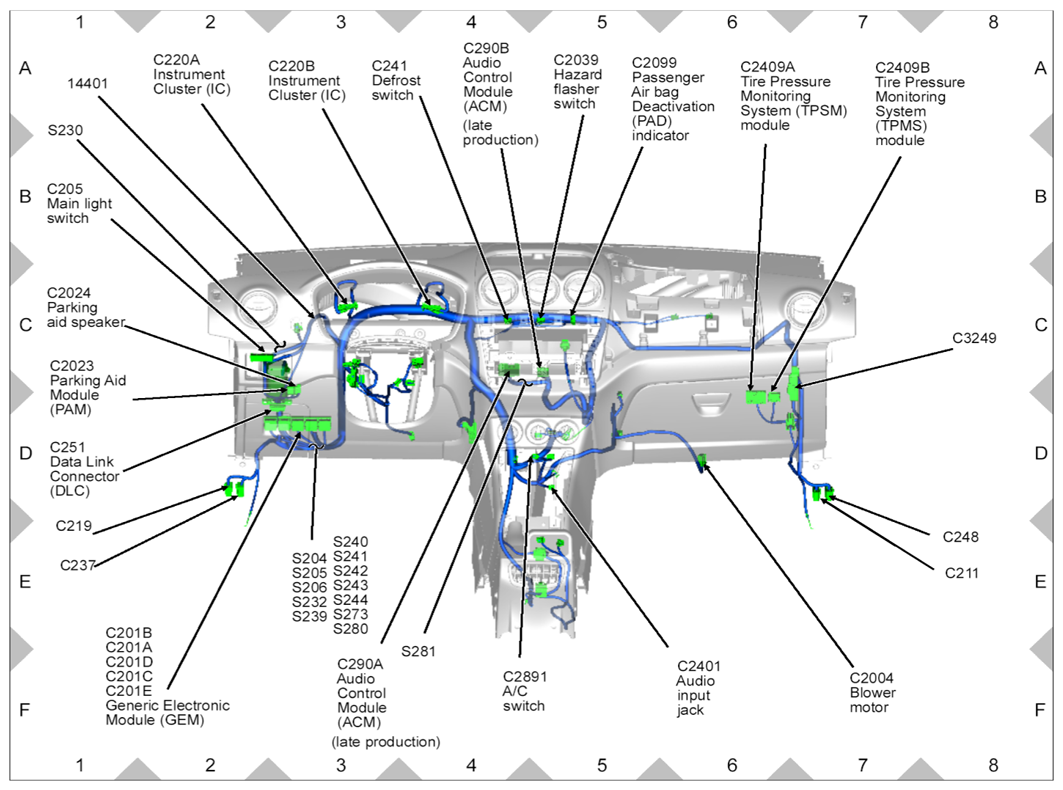

Fig 8: Dash Panel Wiring Harness Components Location (2 Of 3)

G07909366

Courtesy of FORD MOTOR CO.

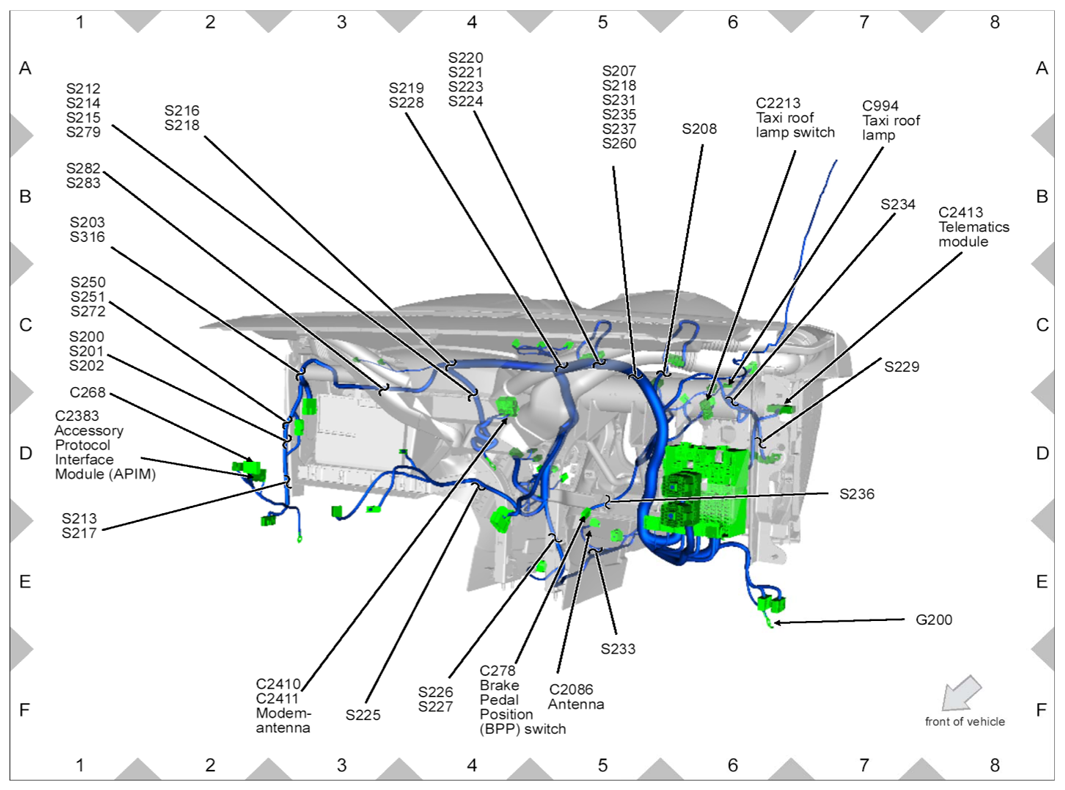

Fig 9: Dash Panel Wiring Harness Components Location (3 Of 3)

G07909367

Courtesy of FORD MOTOR CO.

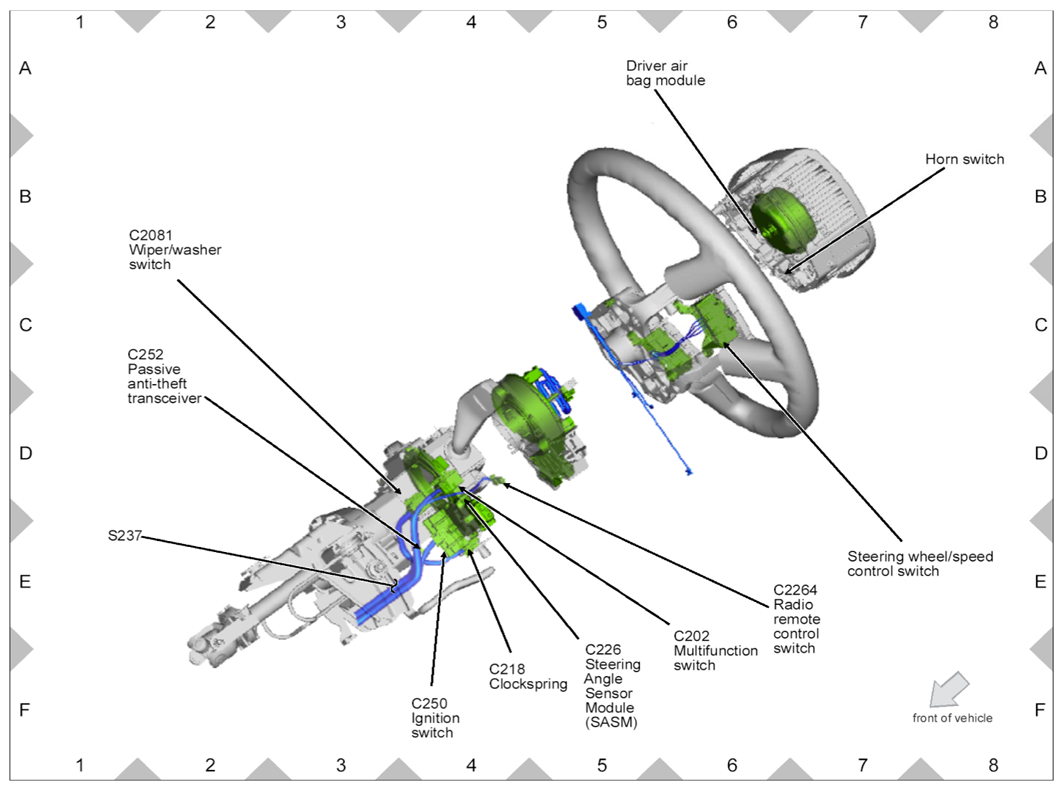

Fig 10: Steering Column Wiring Harness Components Location

G07909368

Courtesy of FORD MOTOR CO.

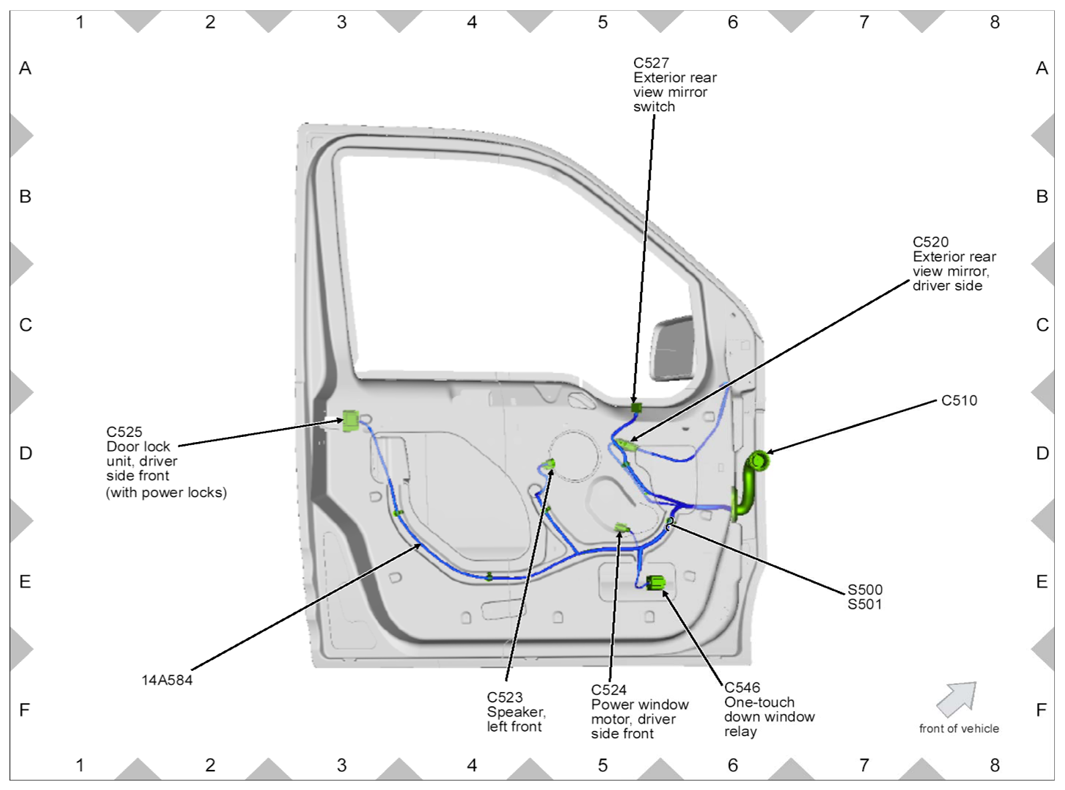

Fig 11: Door Wiring Harness Components Location (1 Of 2)

G07909369

Courtesy of FORD MOTOR CO.

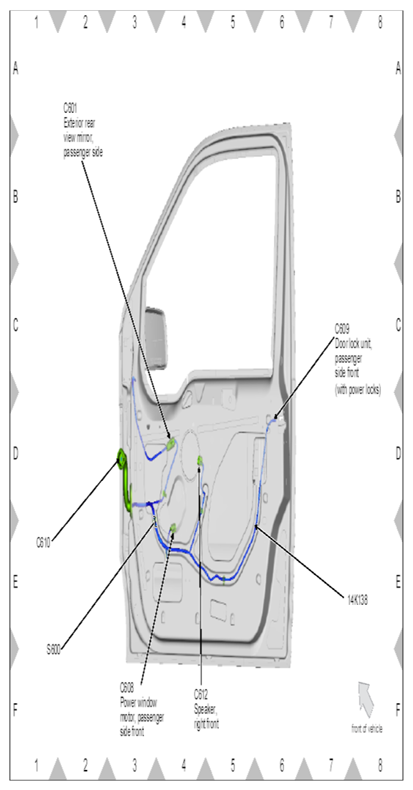

Fig 12: Door Wiring Harness Components Location (2 Of 2)

G07909370

Courtesy of FORD MOTOR CO.

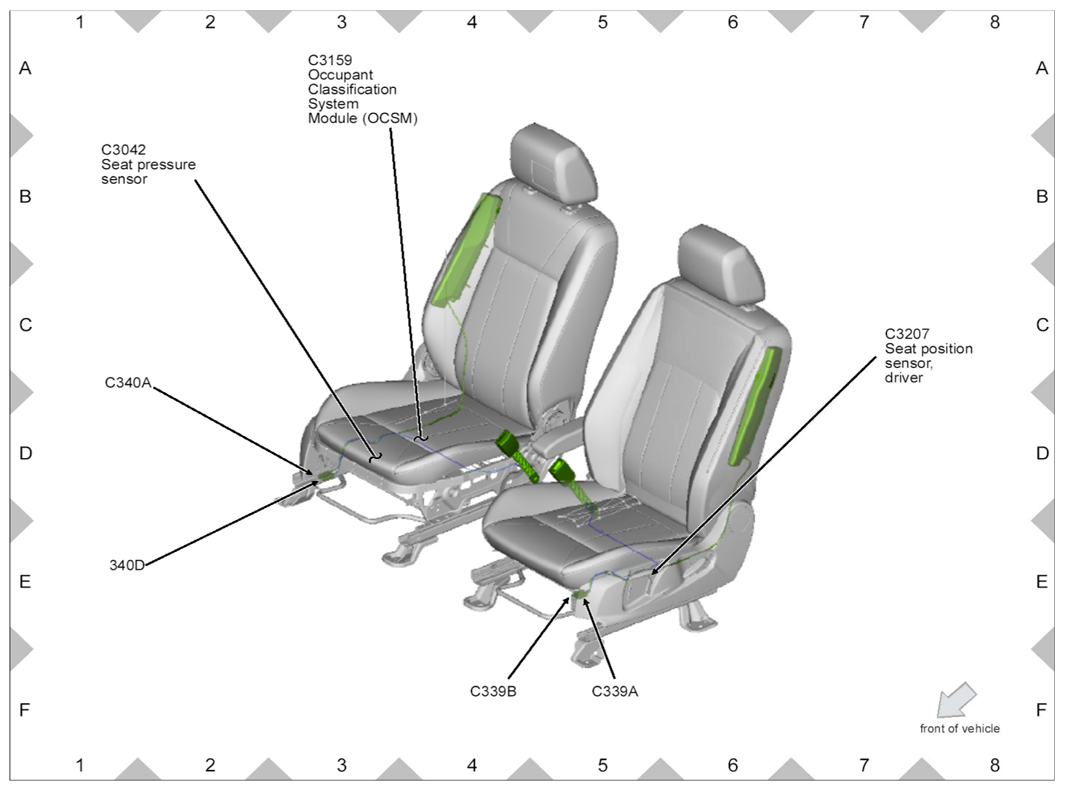

Fig 13: Seat Wiring Harness Components Location

G07909371

Courtesy of FORD MOTOR CO.

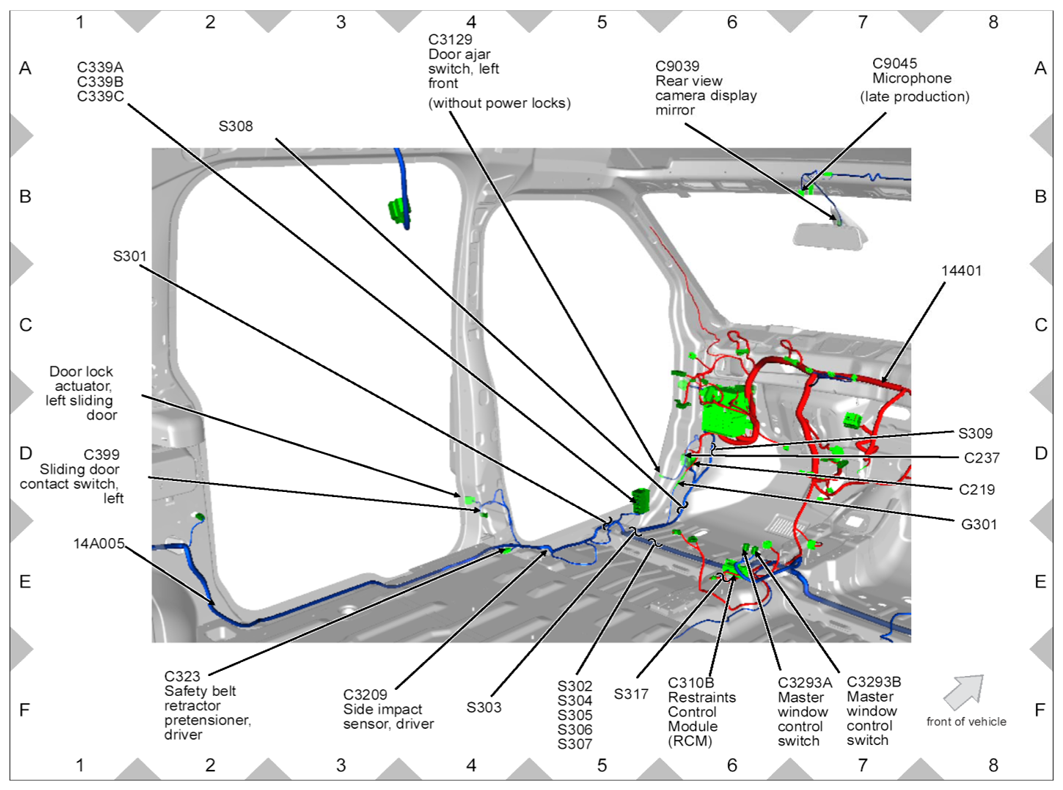

Fig 14: Vehicle Interior Compartment Wiring Harness Components Location (1 Of 4)

G07909372

Courtesy of FORD MOTOR CO.

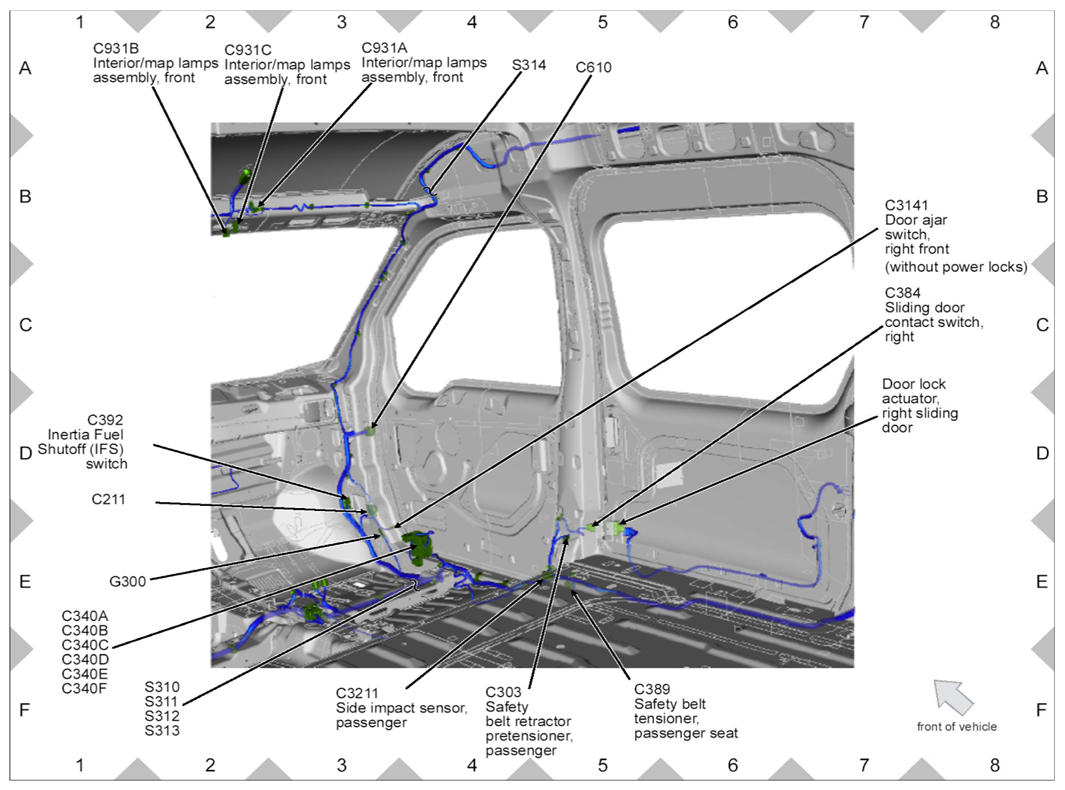

Fig 15: Vehicle Interior Compartment Wiring Harness Components Location (2 Of 4)

G07909373

Courtesy of FORD MOTOR CO.

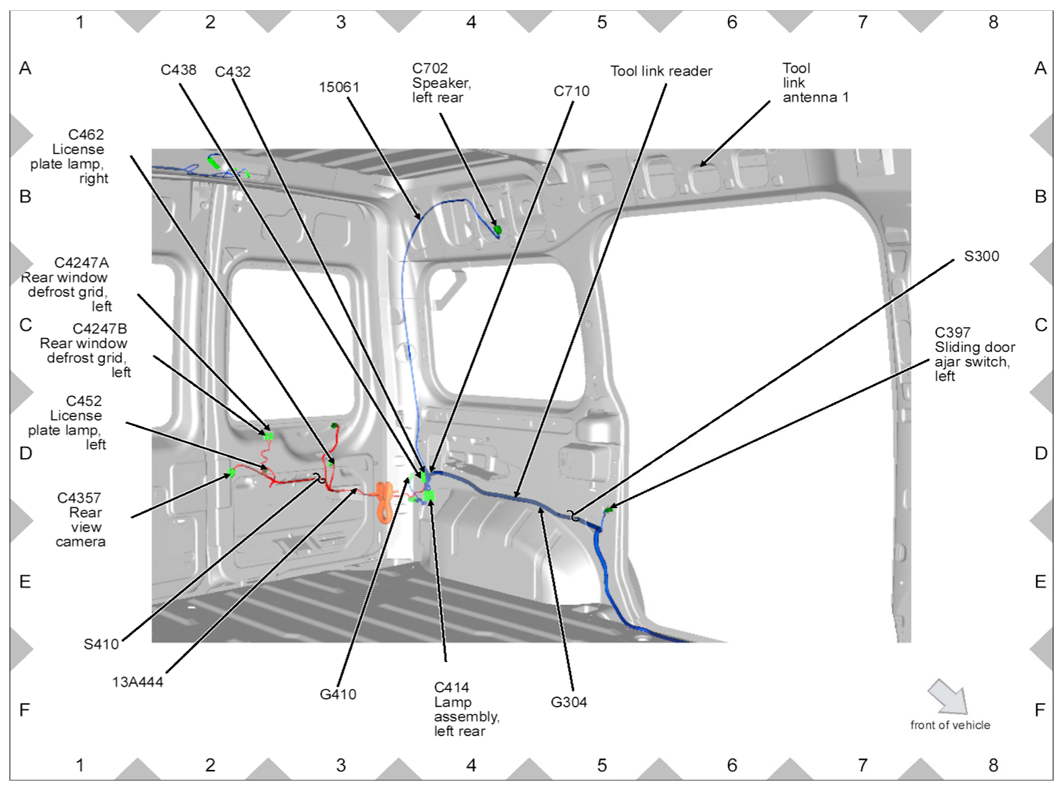

Fig 16: Vehicle Interior Compartment Wiring Harness Components Location (3 Of 4)

G07909374

Courtesy of FORD MOTOR CO.

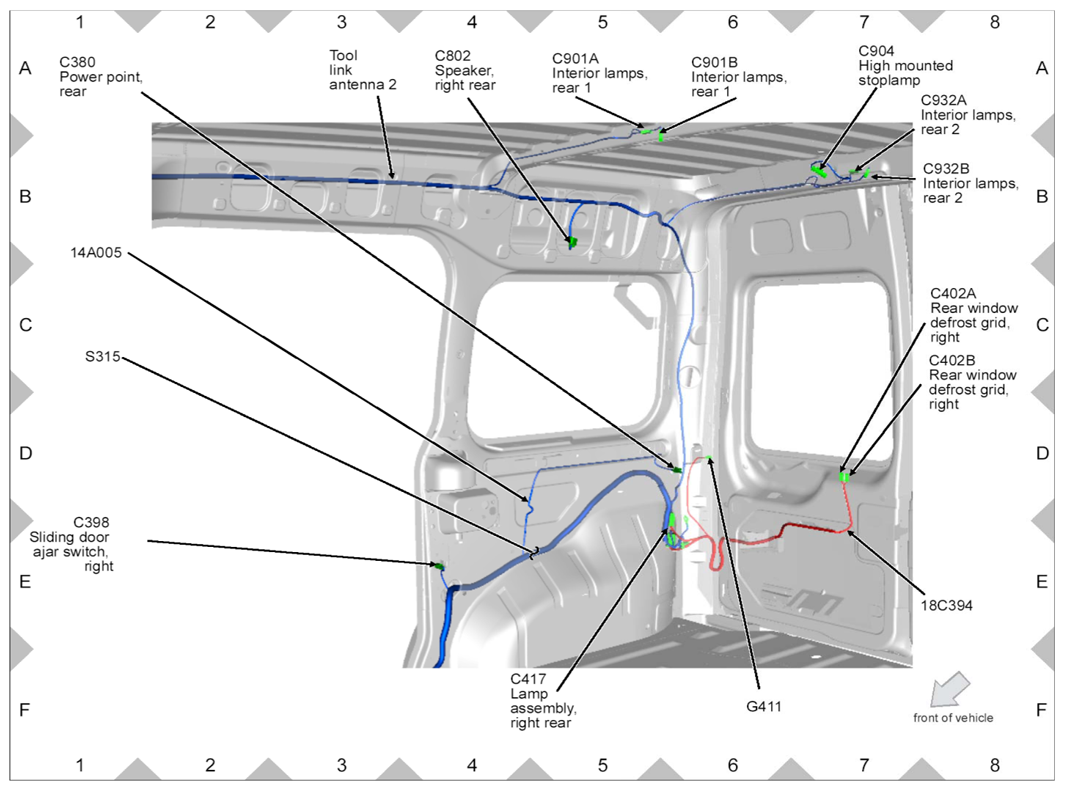

Fig 17: Vehicle Interior Compartment Wiring Harness Components Location (4 Of 4)

G07909375

Courtesy of FORD MOTOR CO.

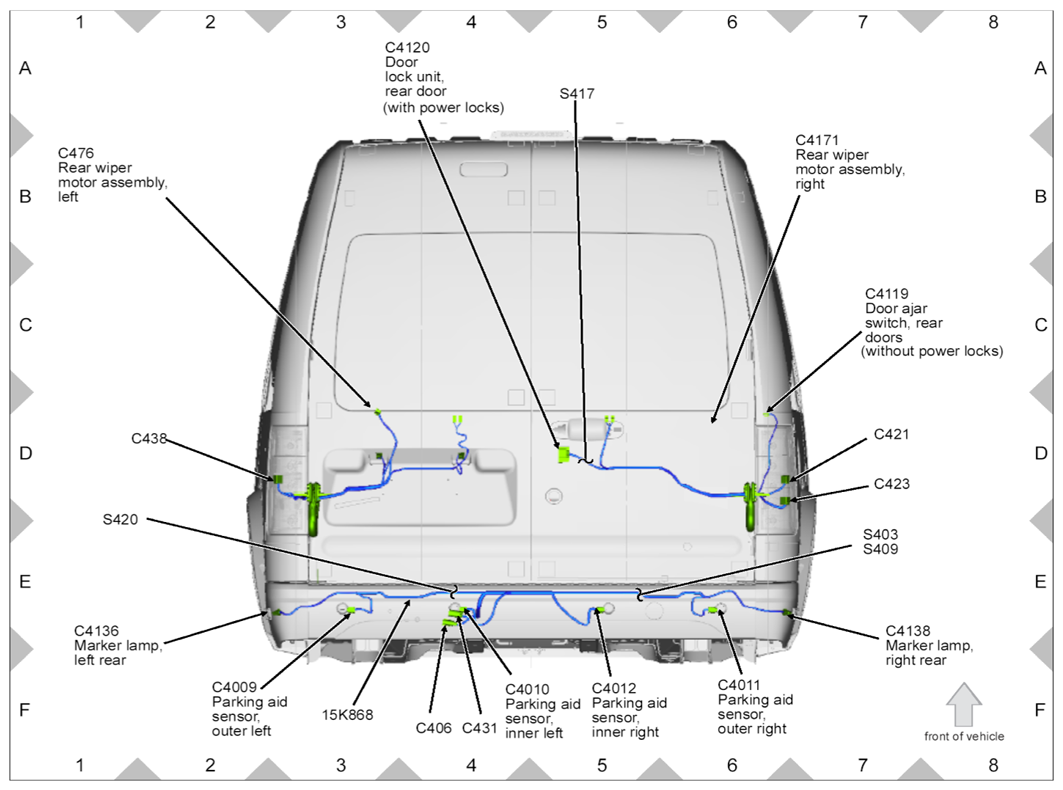

Fig 18: Body Corner Wiring Harness Components Location

G07909376

Courtesy of FORD MOTOR CO.

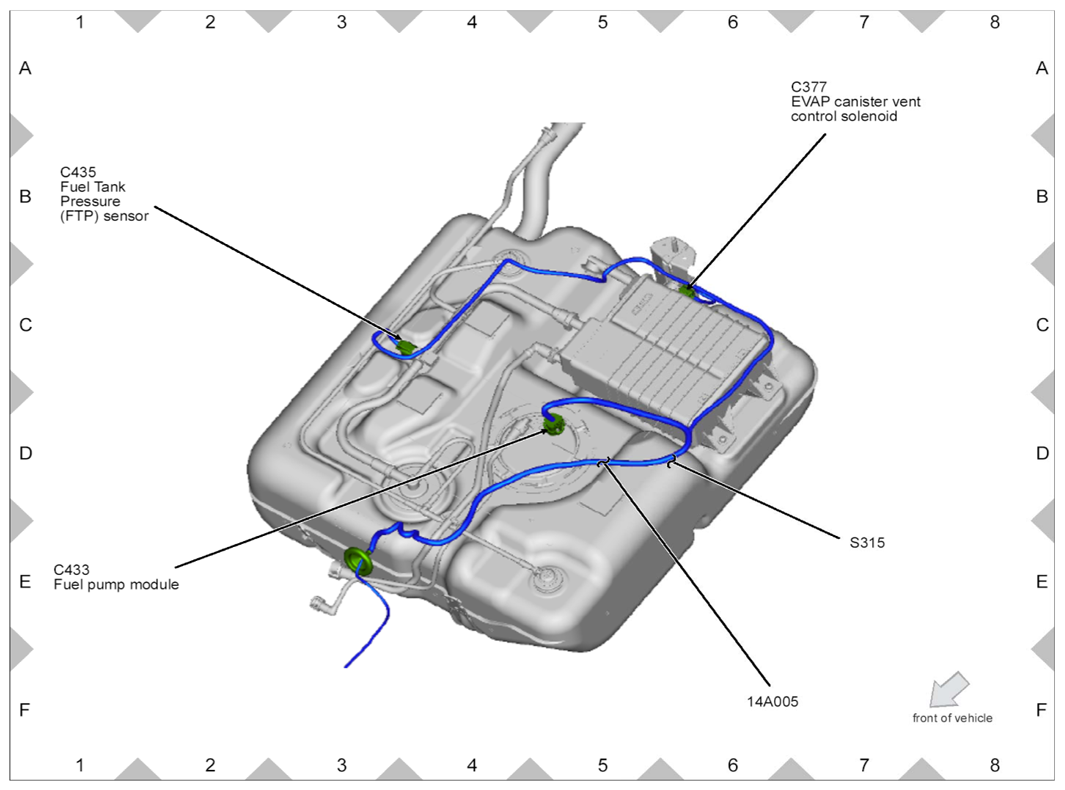

Fig 19: Fuel Pump Module Wiring Harness Components Location

G07909377

Courtesy of FORD MOTOR CO.

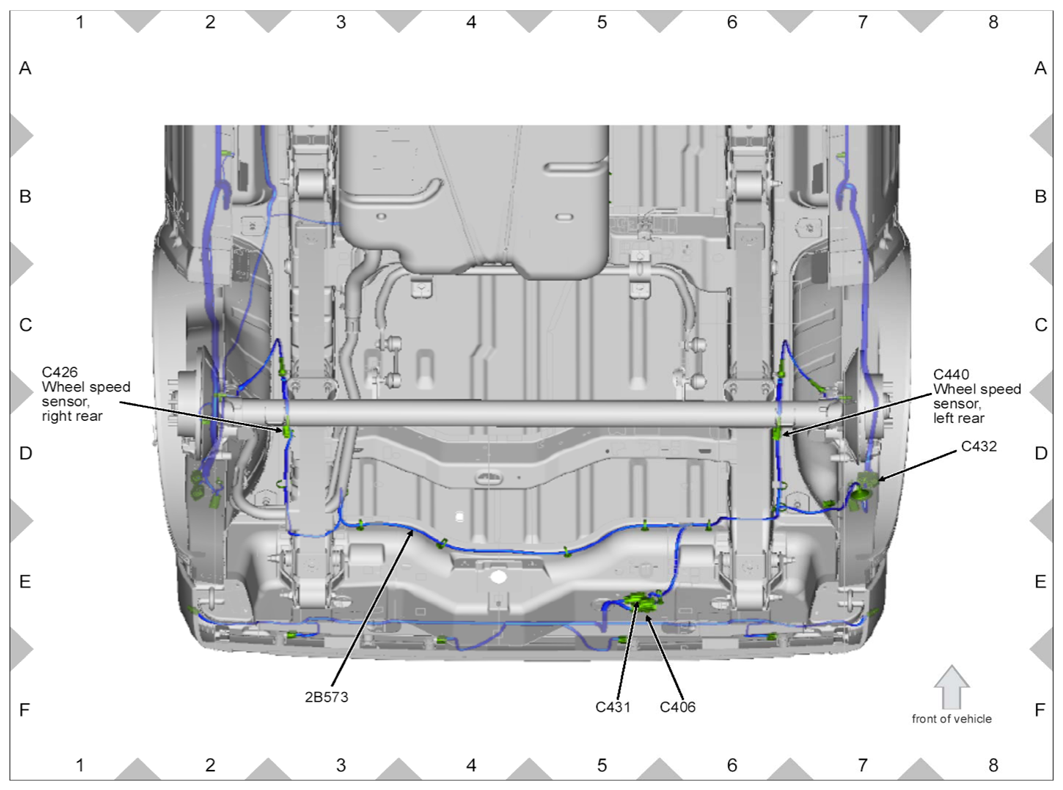

Fig 20: Wheel Speed Sensor Wiring Harness Components Location

G07909378

Courtesy of FORD MOTOR CO.

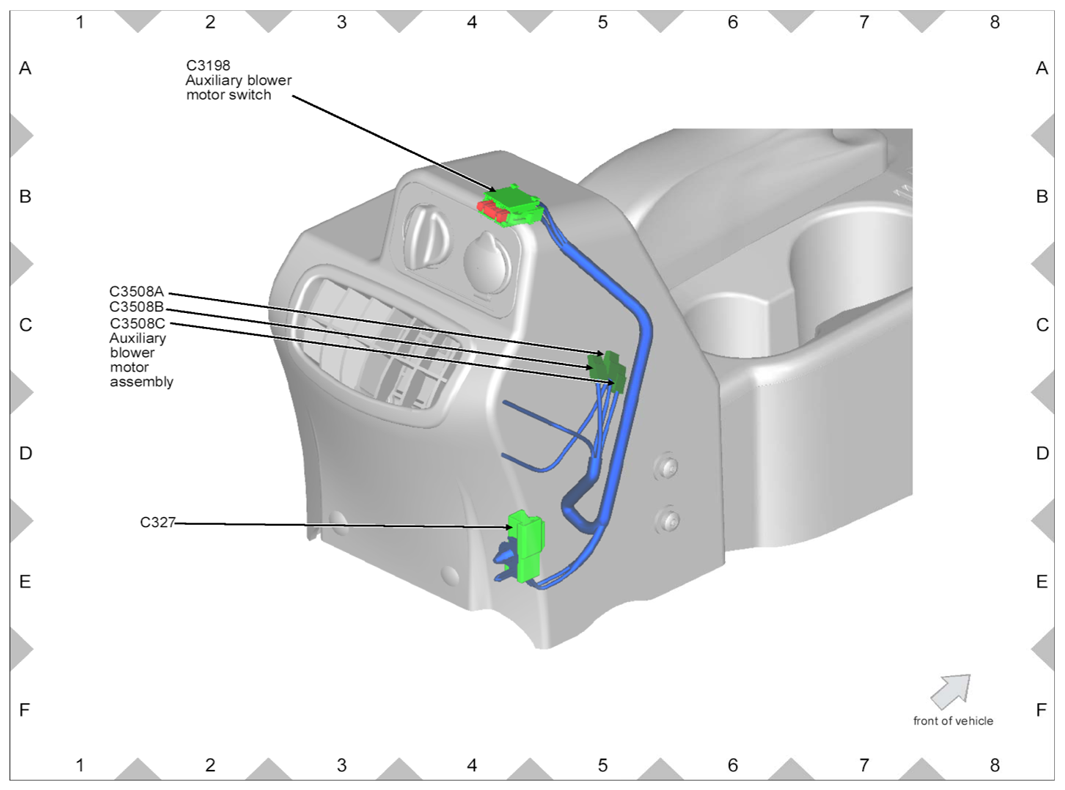

Fig 21: Auxiliary Blower Motor Switch Wiring Harness Components Location

G07909379

Courtesy of FORD MOTOR CO.
