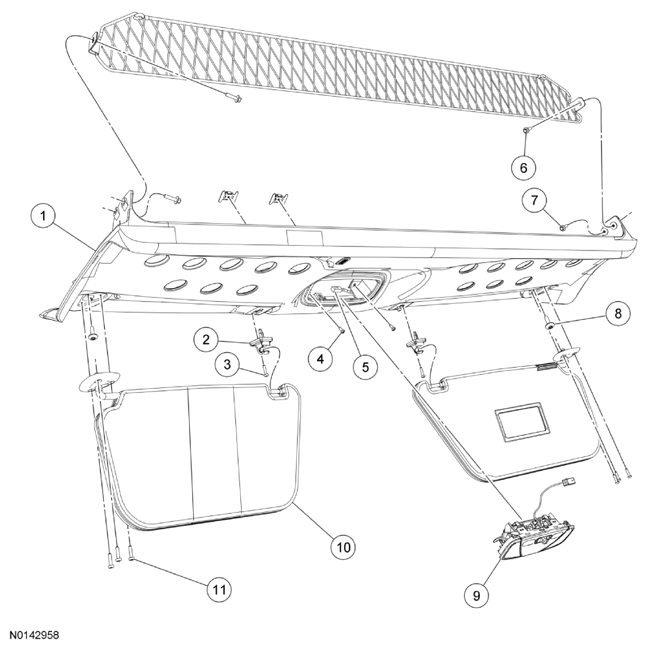

Console - Overhead: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | 117A72 | Overhead console |
| 2 | 115A00 | Sun visor clip (2 required) |
| 3 | W504244 | Sun visor clip screw (2 required) |
| 4 | W504241 | Overhead console front screw (2 required) |
| 5 | 14334 | Front dome lamp electrical connector |
| 6 | W505145 | Overhead console cargo net bracket bolt (2 required) |
| 7 | W505145 | Overhead console rear bolt (2 required) |
| 8 | W700146 | Overhead console front bolt (2 required) |
| 9 | 13776 | Front dome lamp |
| 10 | 04100 RH/ 04101 LH | Sun visor (2 required) |
| 11 | W504244 | Sun visor screw (6 required) |
