Removal And Installation: Radiator: Notes

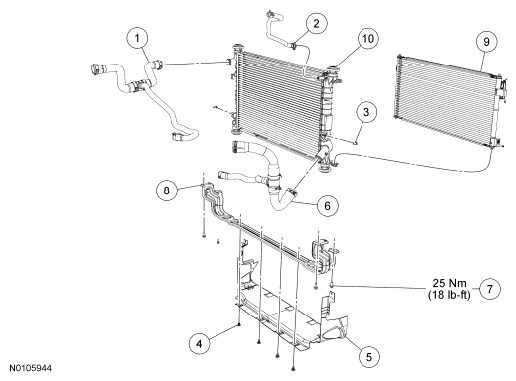

| Item | Part Number | Description |
|---|---|---|
| 1 | 8B274 | Upper radiator hose |
| 2 | 8K276 | Radiator-to-degas bottle hose |
| 3 | W700964 | Cooling fan motor and shroud bolt (2 required) |
| 4 | W702846 | Lower air deflectors pin-type retainer (4 required) |
| 5 | 8B384 | Lower air deflector |
| 6 | 8B273 | Lower radiator hose |
| 7 | W703555 | Lower radiator support bolt (4 required) |
| 8 | 8A297 | Lower radiator support |
| 9 | 19712 | A/C condenser core |
| 10 | 8005 | Radiator |
