Fuel Tank Pressure (FTP) Sensor

The in tank FTP sensor or the inline FTP sensor measures the fuel tank pressure.

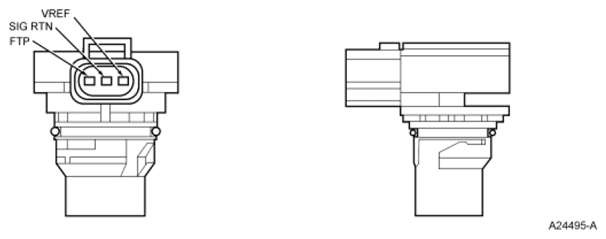

Fig 1: Identifying Typical In Tank FTP Sensor

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Typical Inline FTP Sensor

Courtesy of FORD MOTOR CO.
